Masonry buildings 2

Torrione panoramic garden of the Piazzo

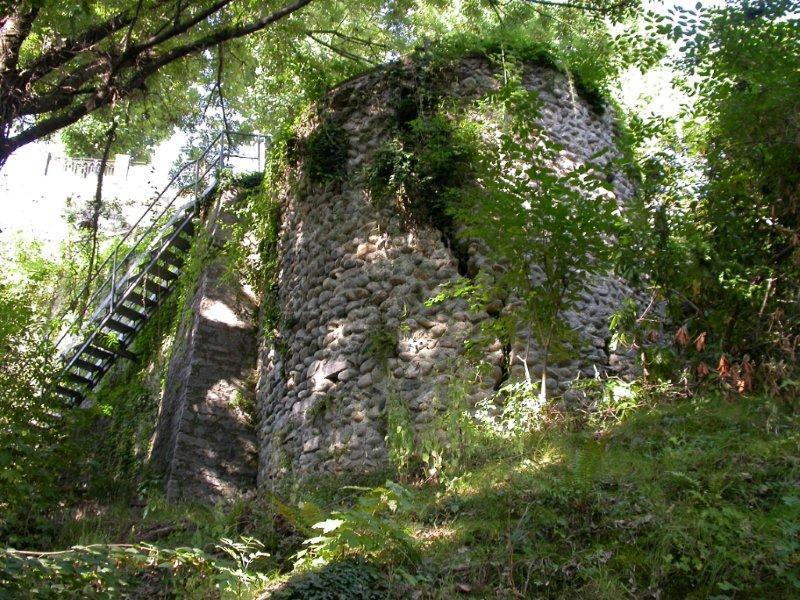

Tower seen from the garden

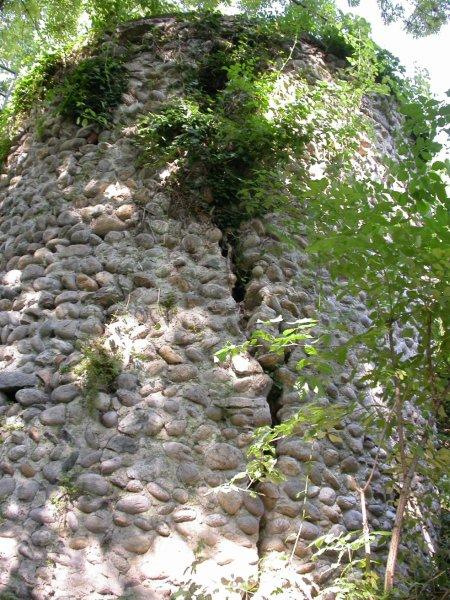

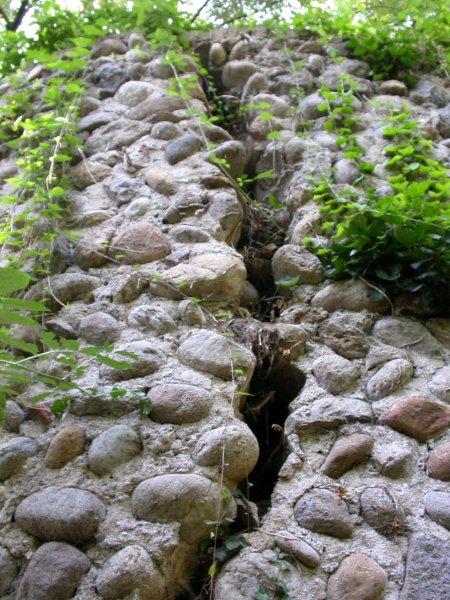

Damage in the masonry
Damage in the wall
Execution of passive anchor tie-rods for the temporary safety belts

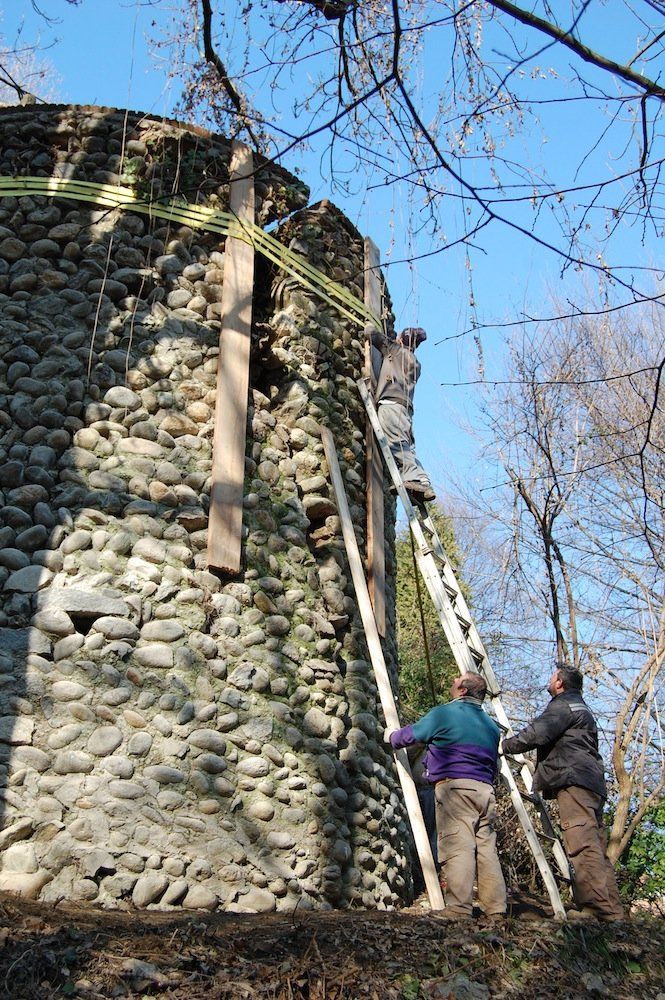

Installation of safety belts with wooden dividers

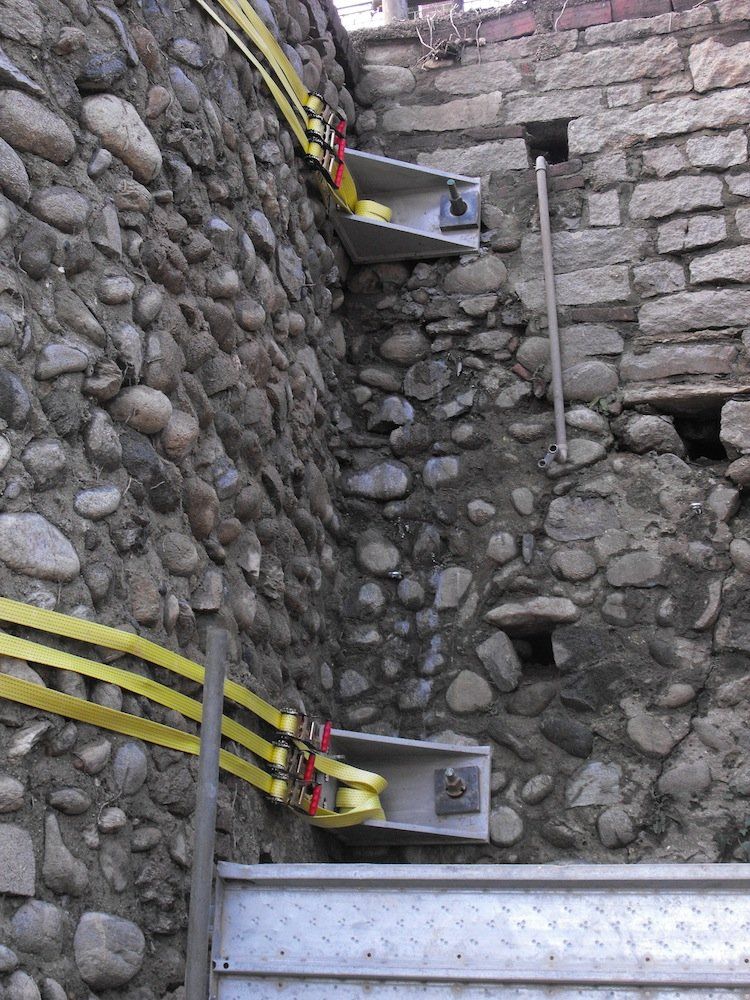

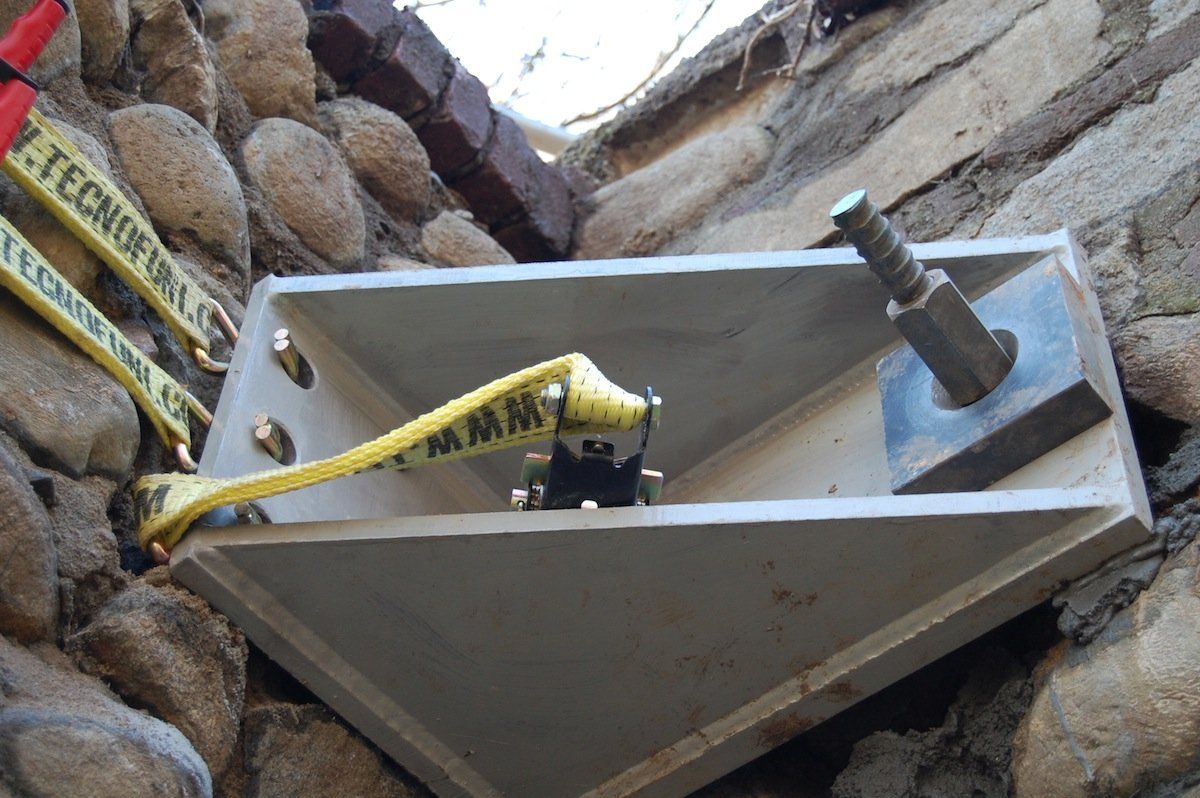

Anchor plate for fixing tensioning belts for temporary safety
Plates and belts of provisional safety with ratchet

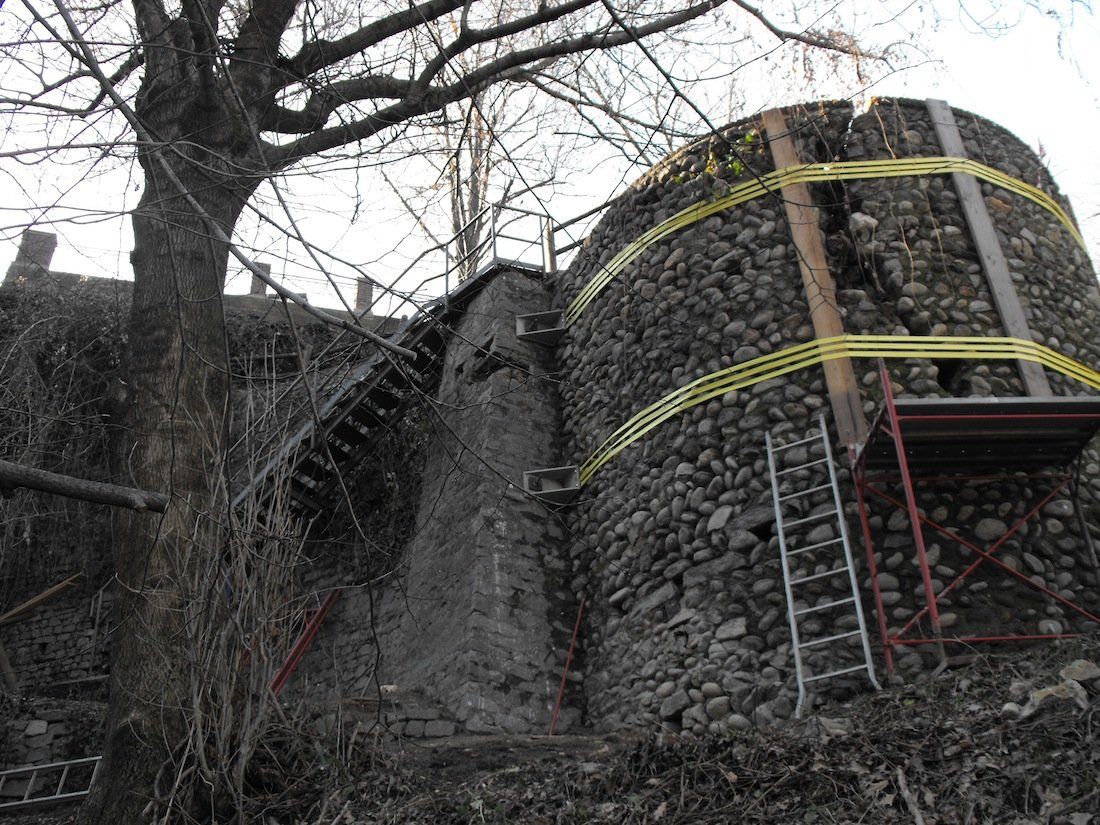

Securing the tower with circling belts and wooden dividers

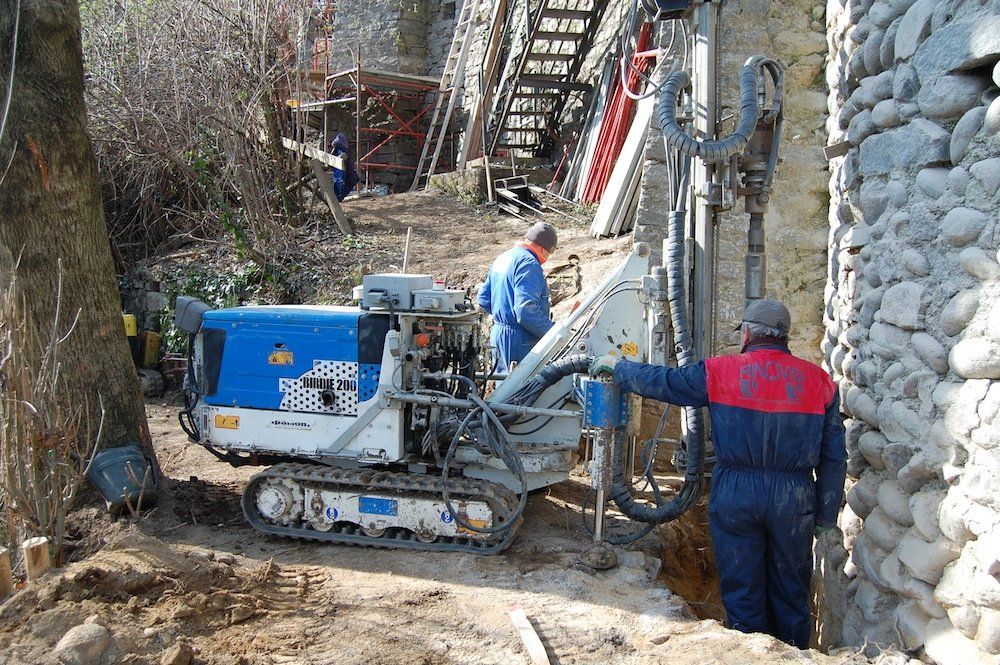

Execution of sub-foundation micropiles

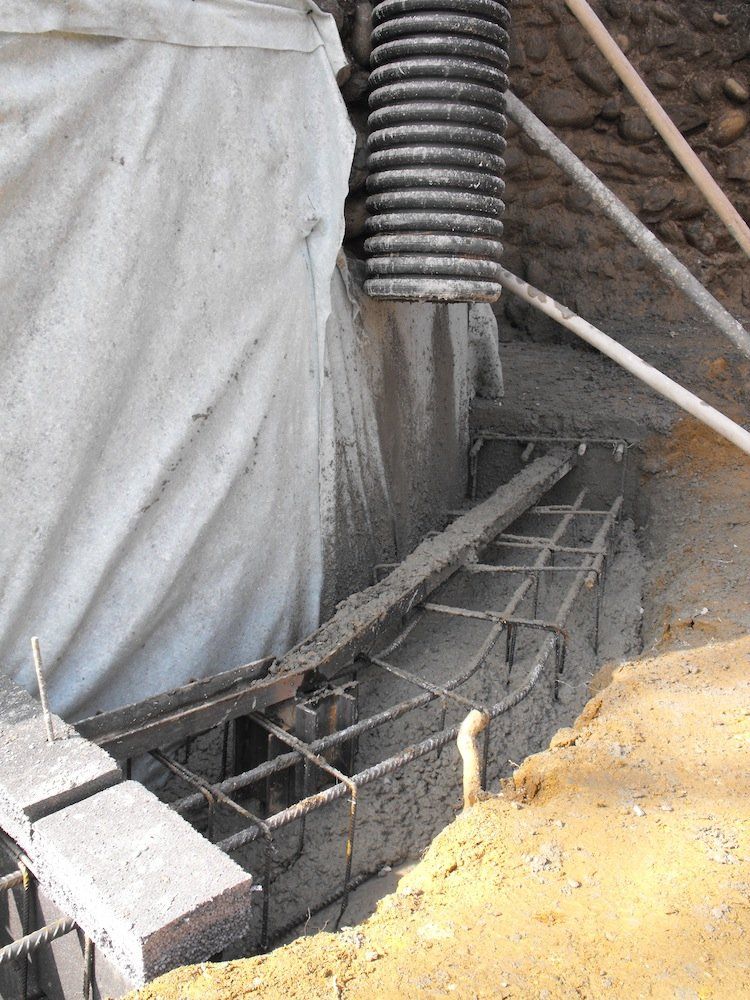

Reinforced curb at the base of the tower made for sub-contractors

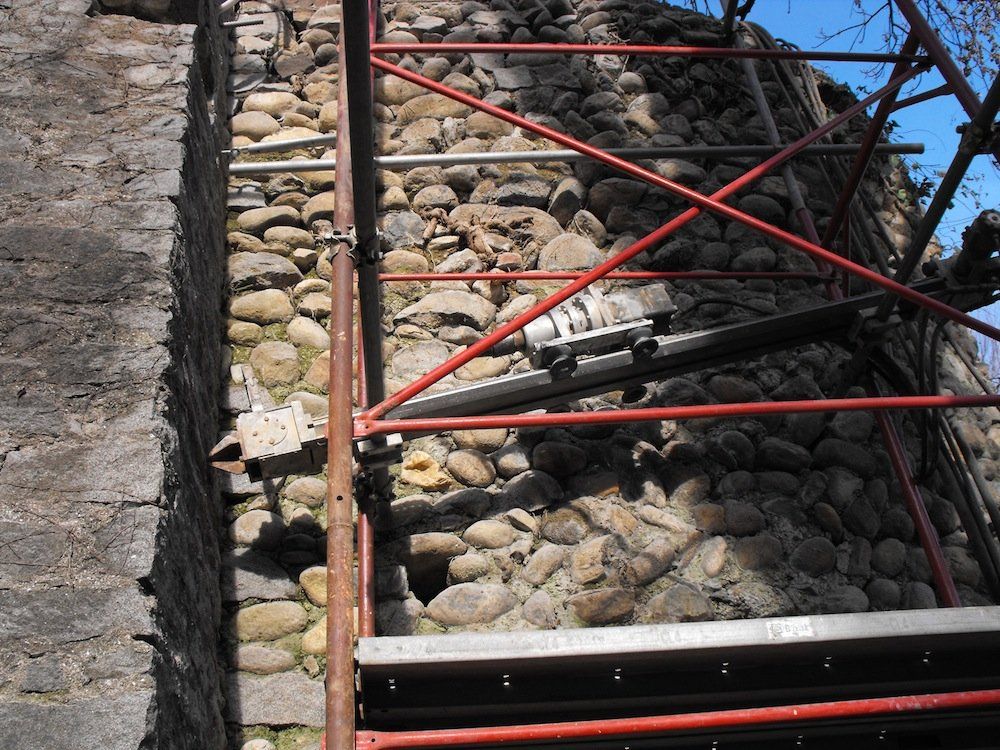

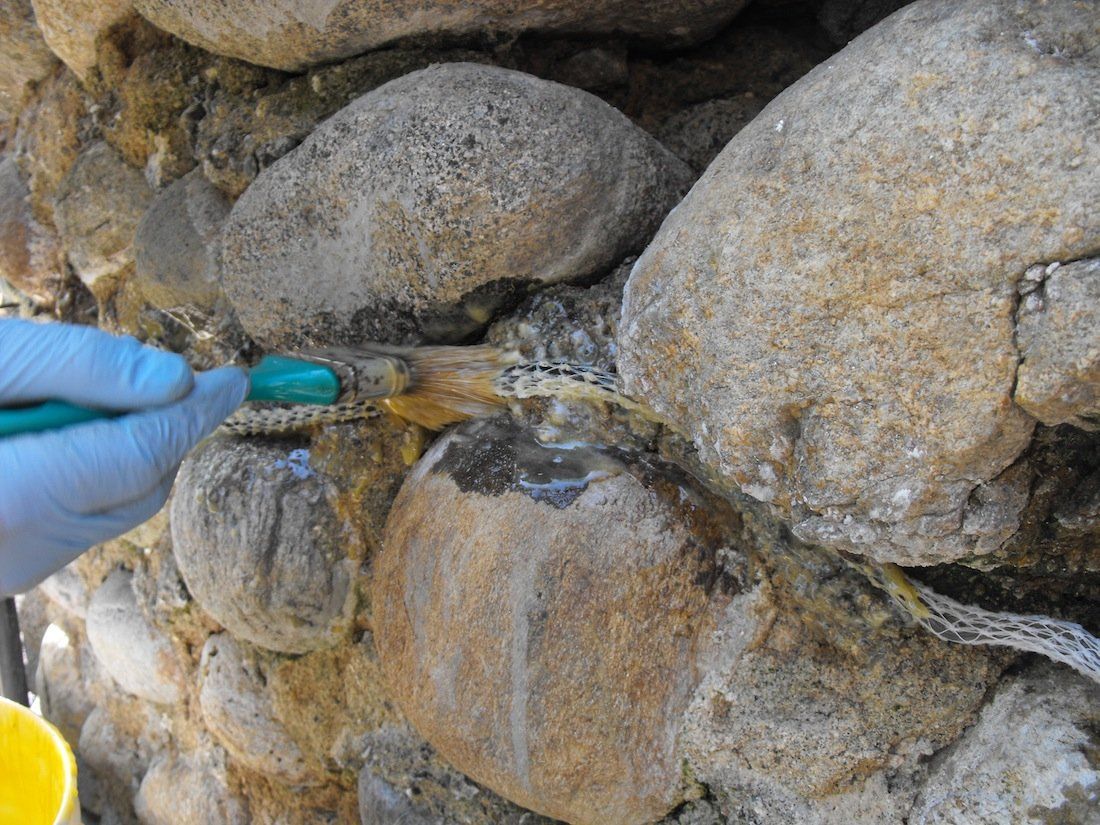

Masonry consolidation using the

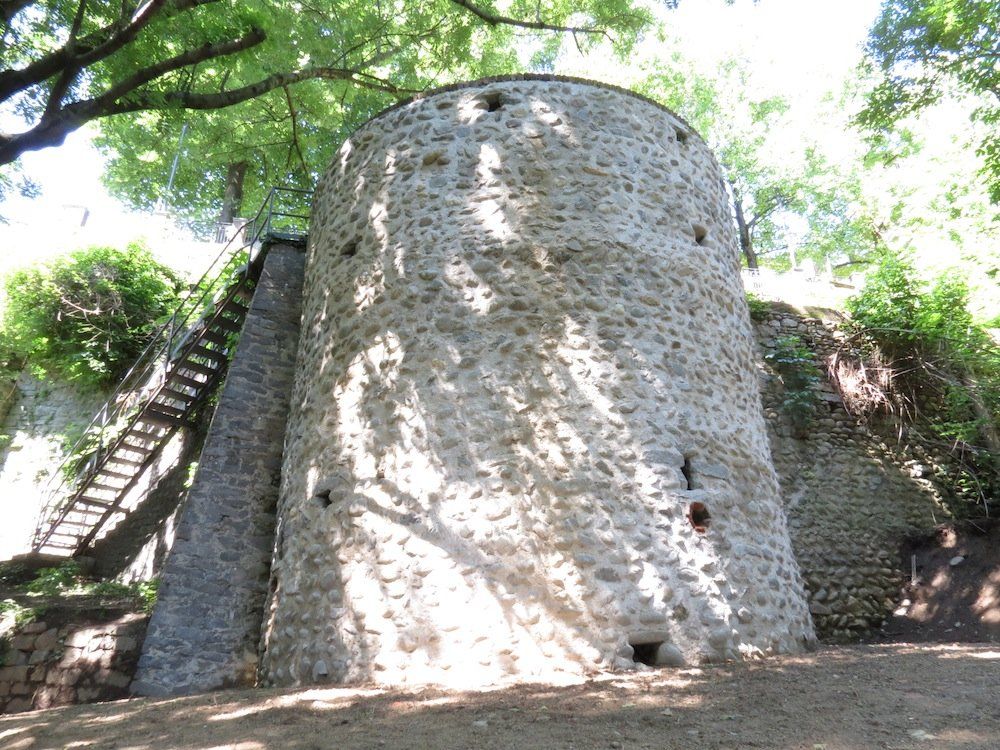

Tower view after consolidation of masonry
View more
Description: Consolidation retaining wall tower panoramic garden of the Piazzo - Corso del Piazzo n. 19 Locations Piazzo (Biella)
Bound Building

Client: Municipality of Biella - Via Battistero n. 4 - Biella

Services: preliminary, definitive, executive design and construction supervision

Period: 2014
In depth:

Attachment 1: intervention sheet

Attachment 2 : scheme of operational phases of the intervention

Attachment 3: tie rod details

Attachment 4: reinforced concrete reinforcement

Cascina Tre Madonne

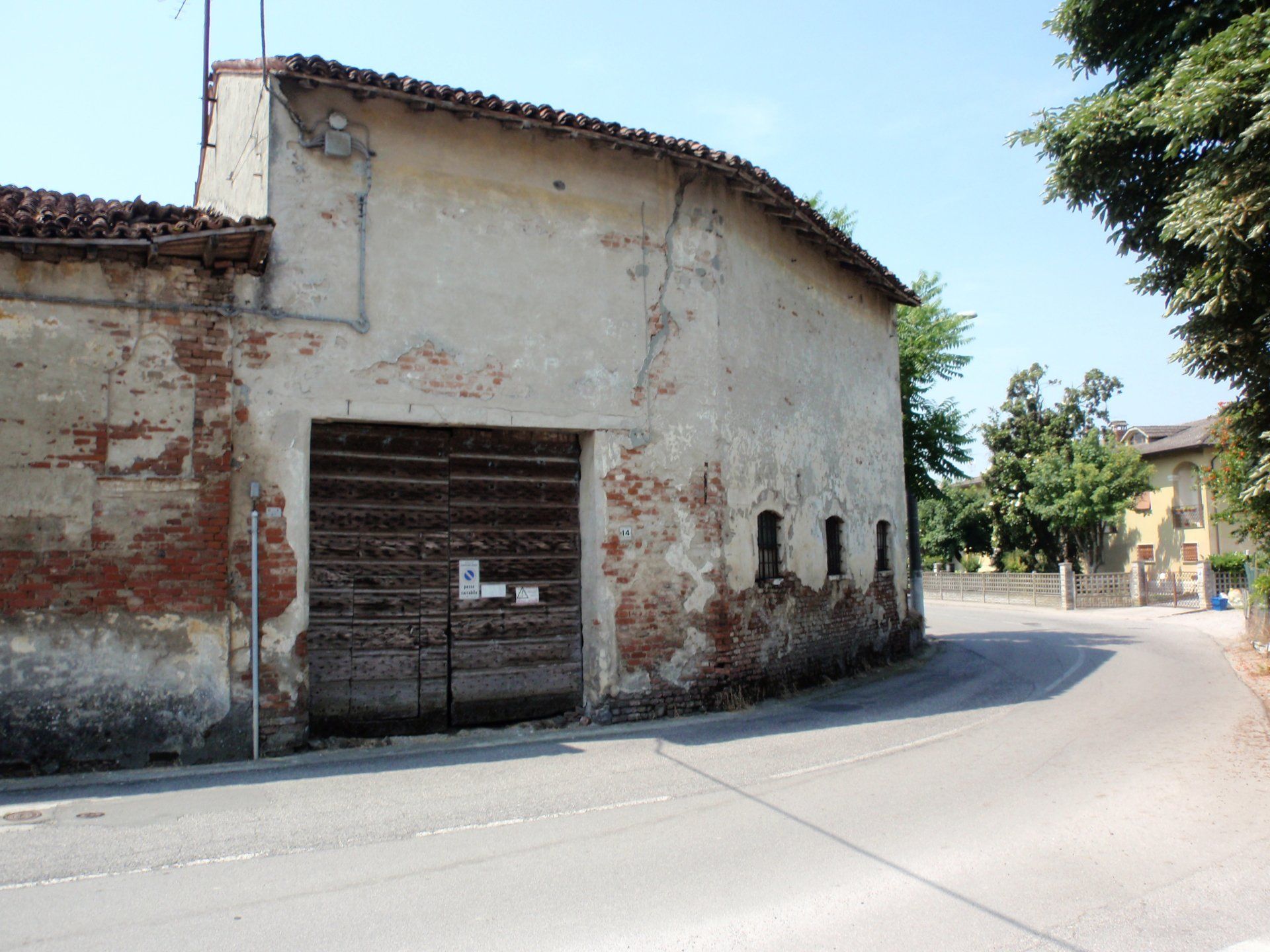

View of the North elevation

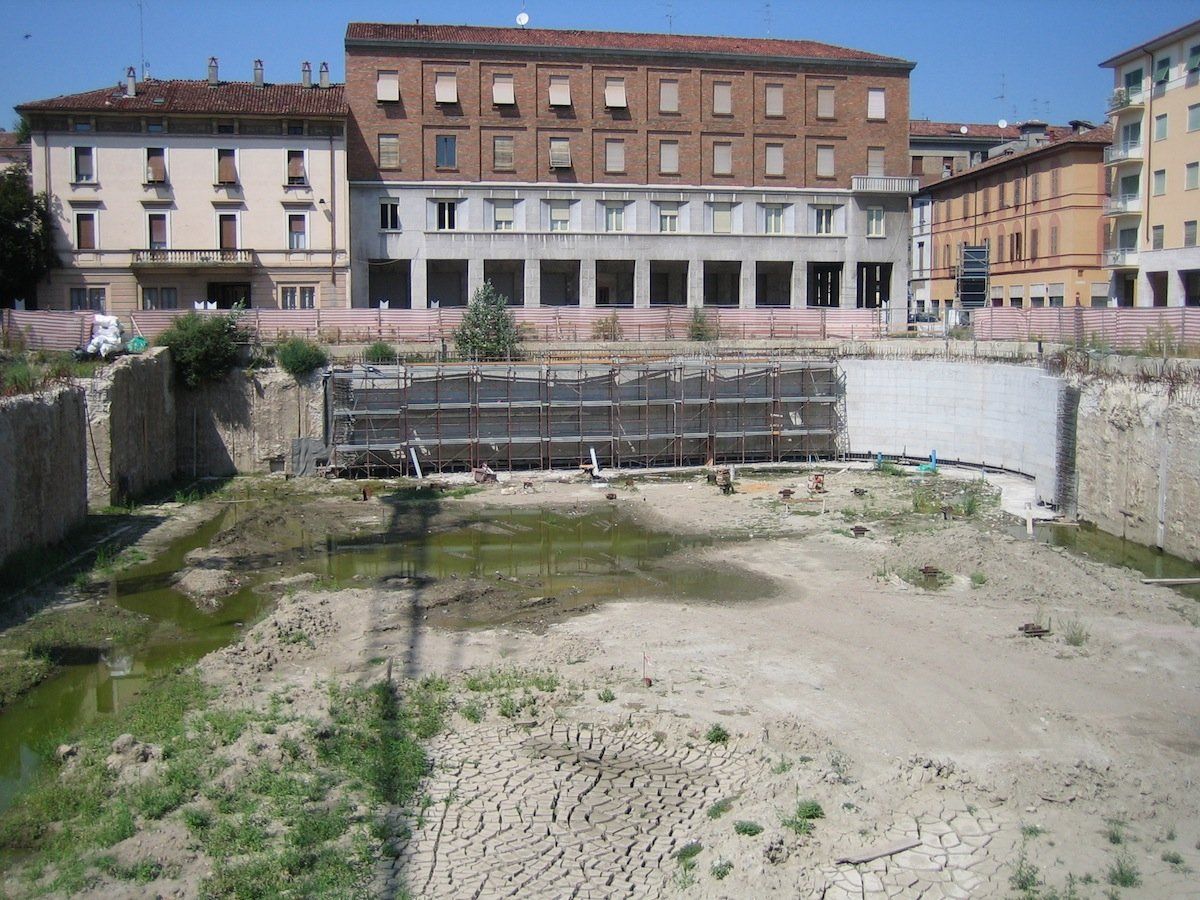

View of access ramp zone with local pump foundation reinforcement

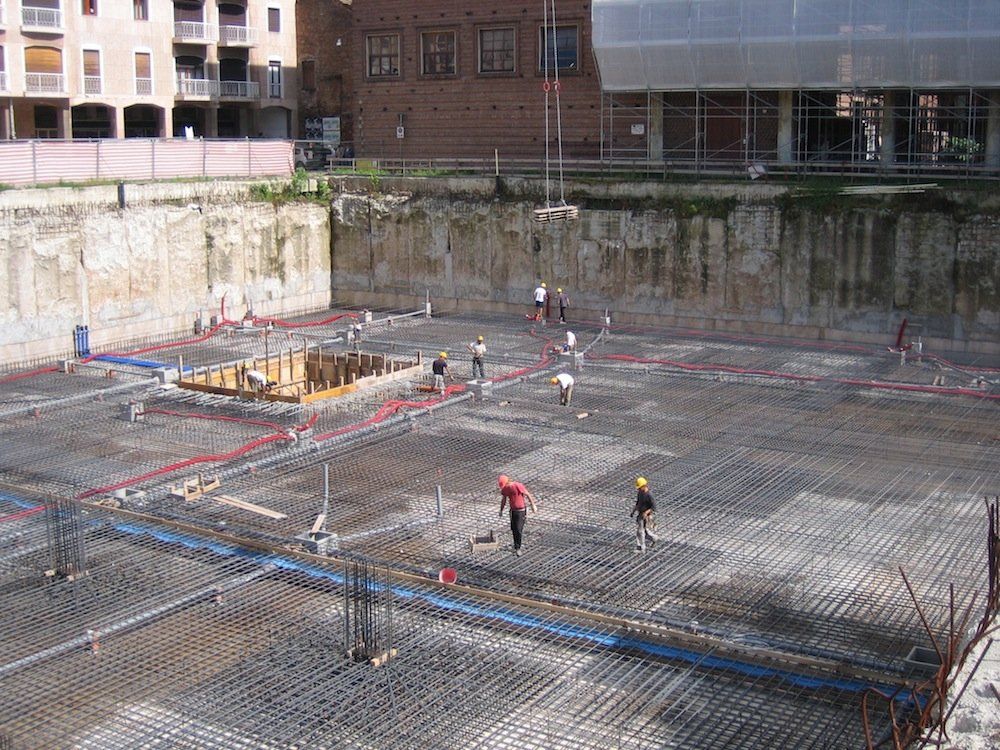

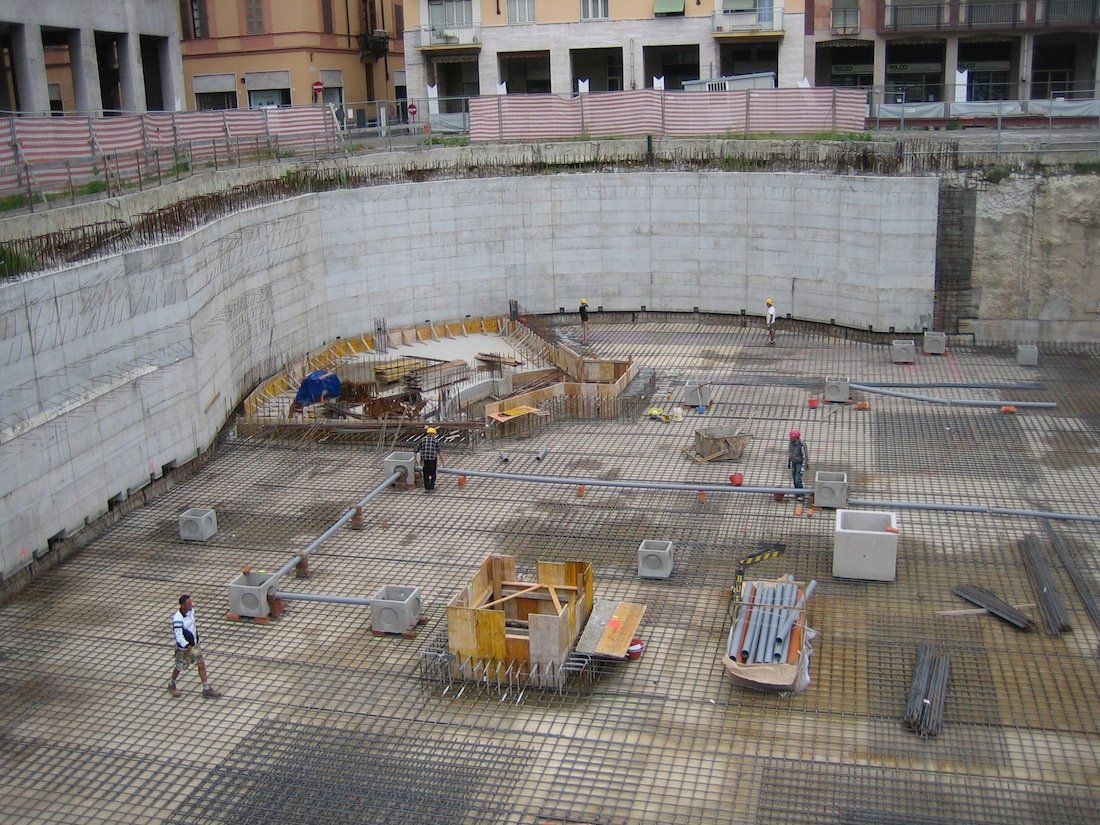

Laying reinforcement foundation slab with positioned water collection wells
Foundation insole completed.

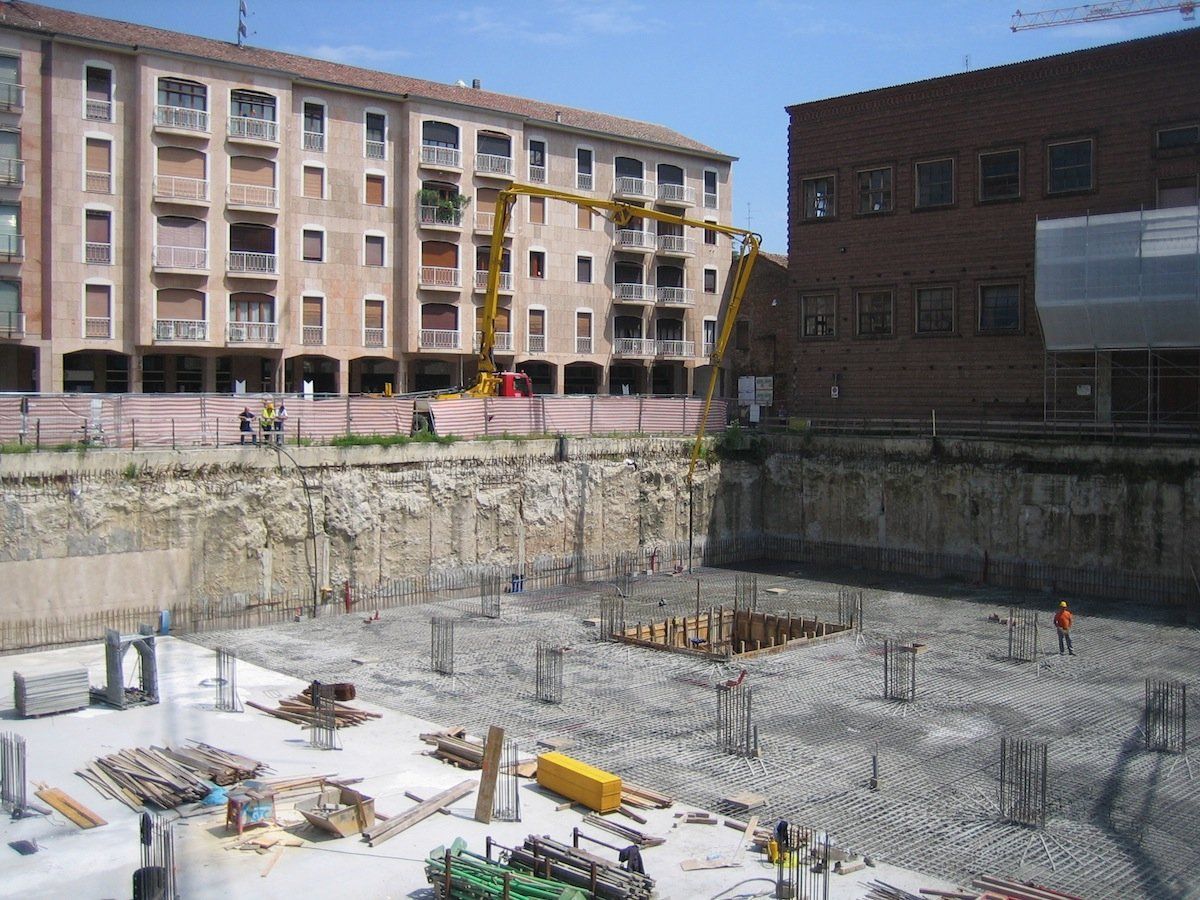

Foundation slab with first lot casting

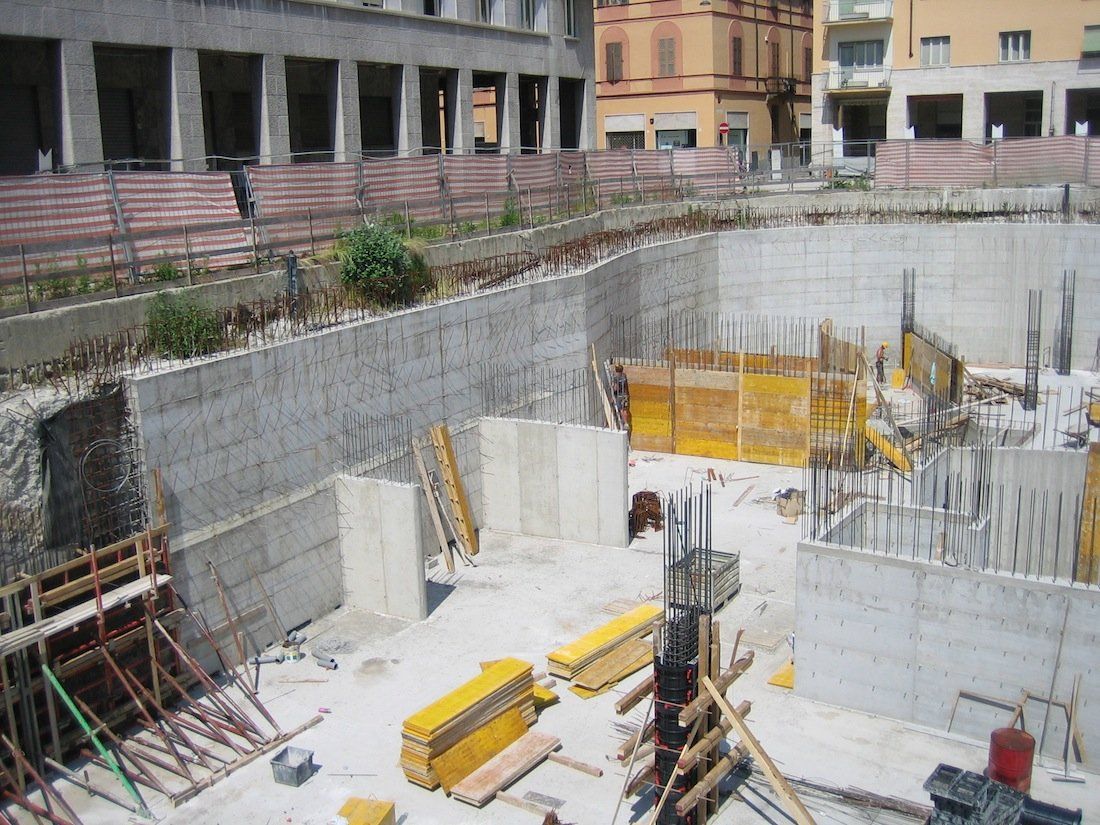

View of walls and partitions in approx

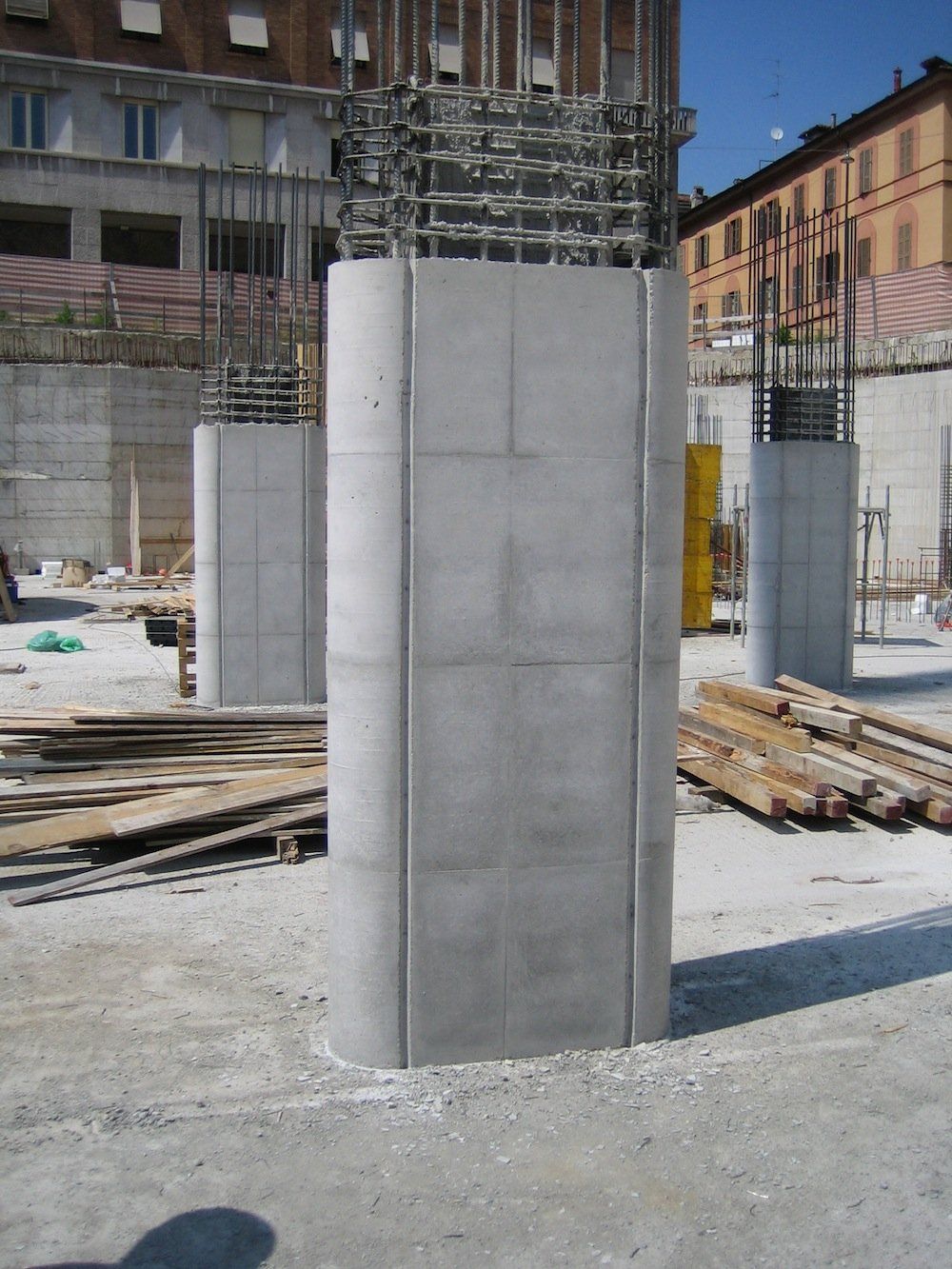

Particular pillar with IPE 600 profile inserted
Particular pillar capital
View of the attic and pillars on the second level
Cascina Tre Madonne
Scaffolding insole with u-boot lightening formwork
Armor insole cover with armor curbs tub
View of the attic and pillars on the first level
Access ramp entrance view
Cover slab with special tub curb
View of the archaeological area
First level underground view
First level underground view
View more
View of the North elevation

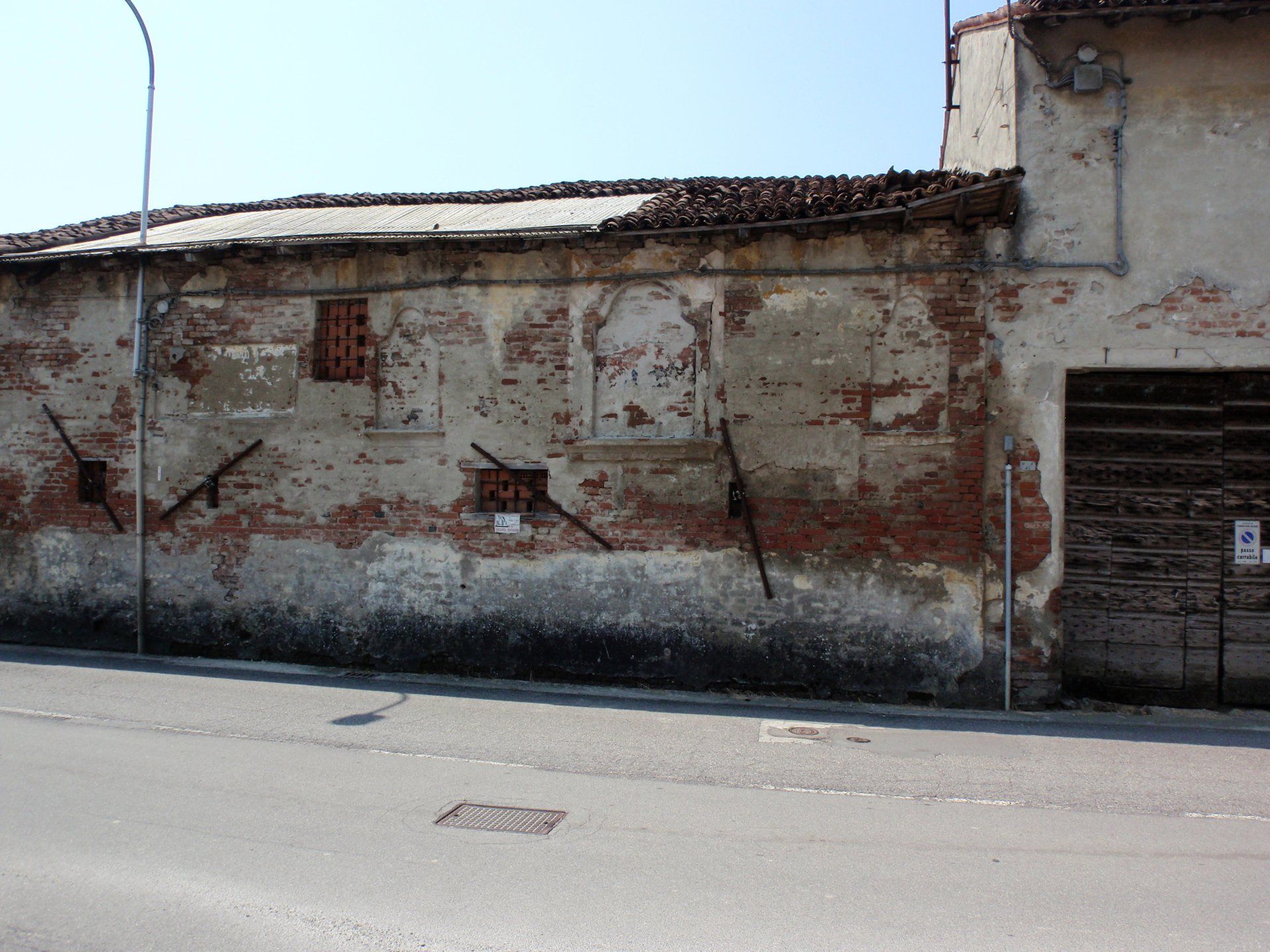

North elevation showing the lack of plaster and the presence of pipes and joints

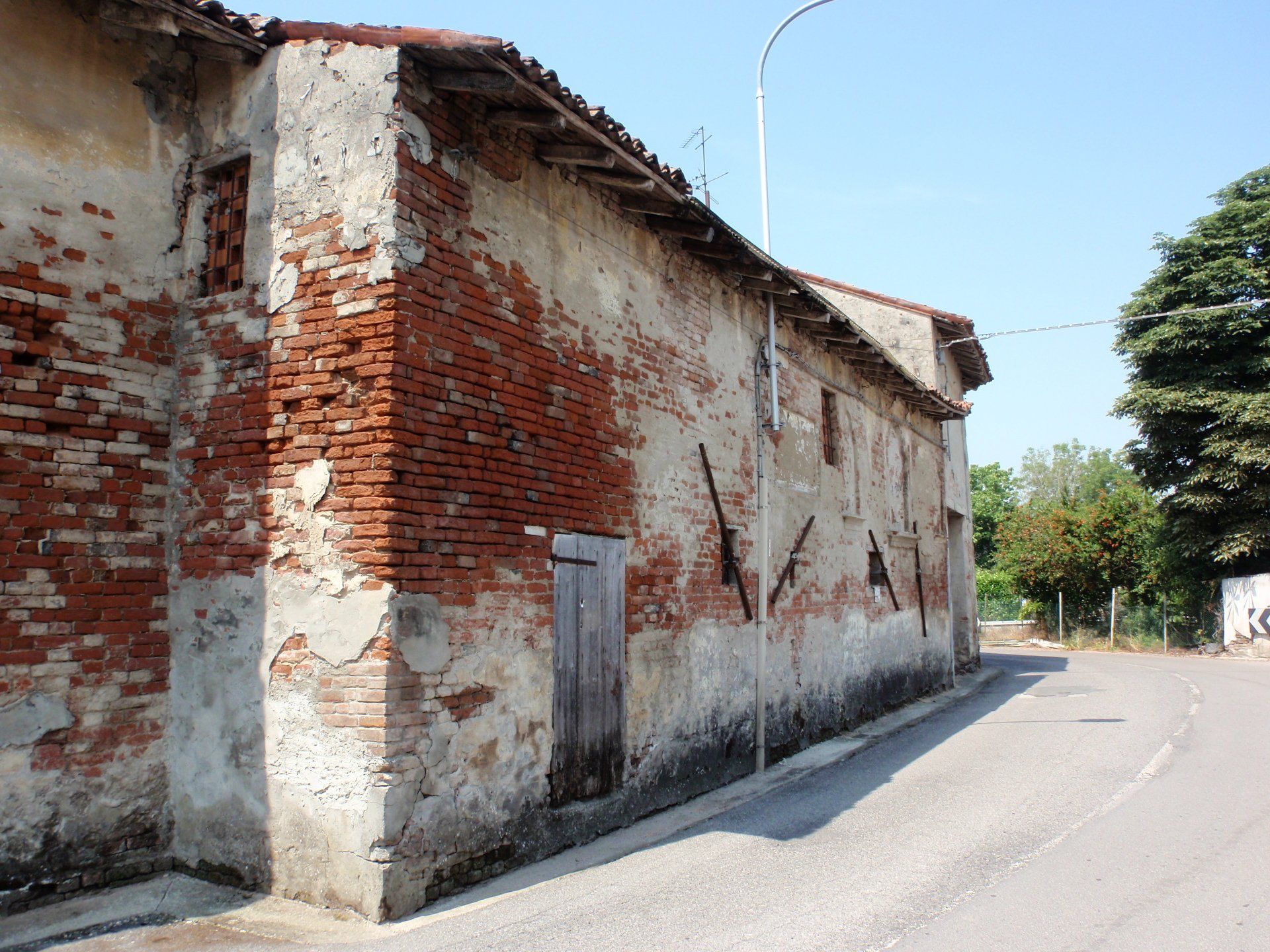

North elevation with a large portion of masonry where there is a lack of plaster and mortar joints.

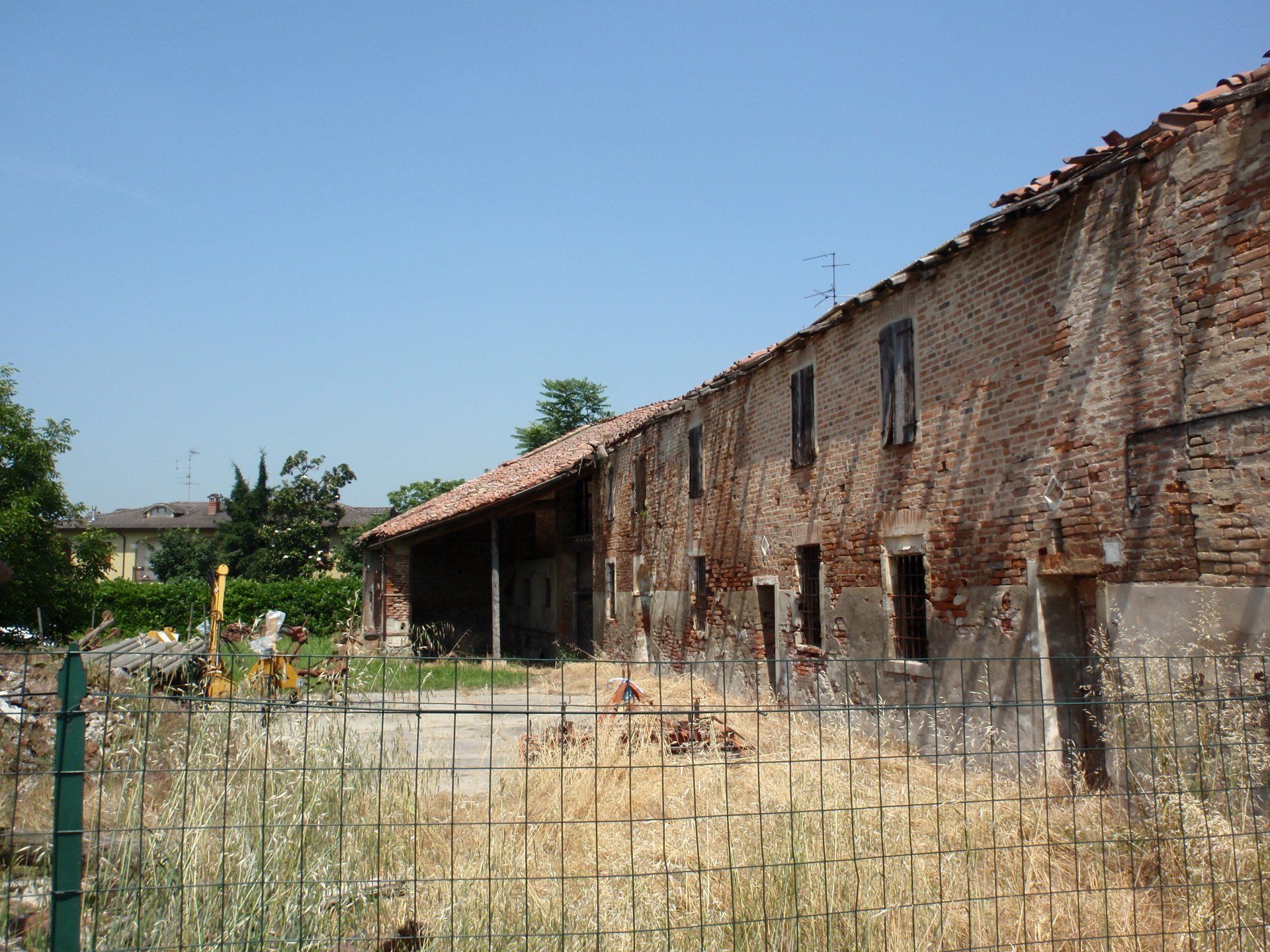

Back view with deterioration of the masonry

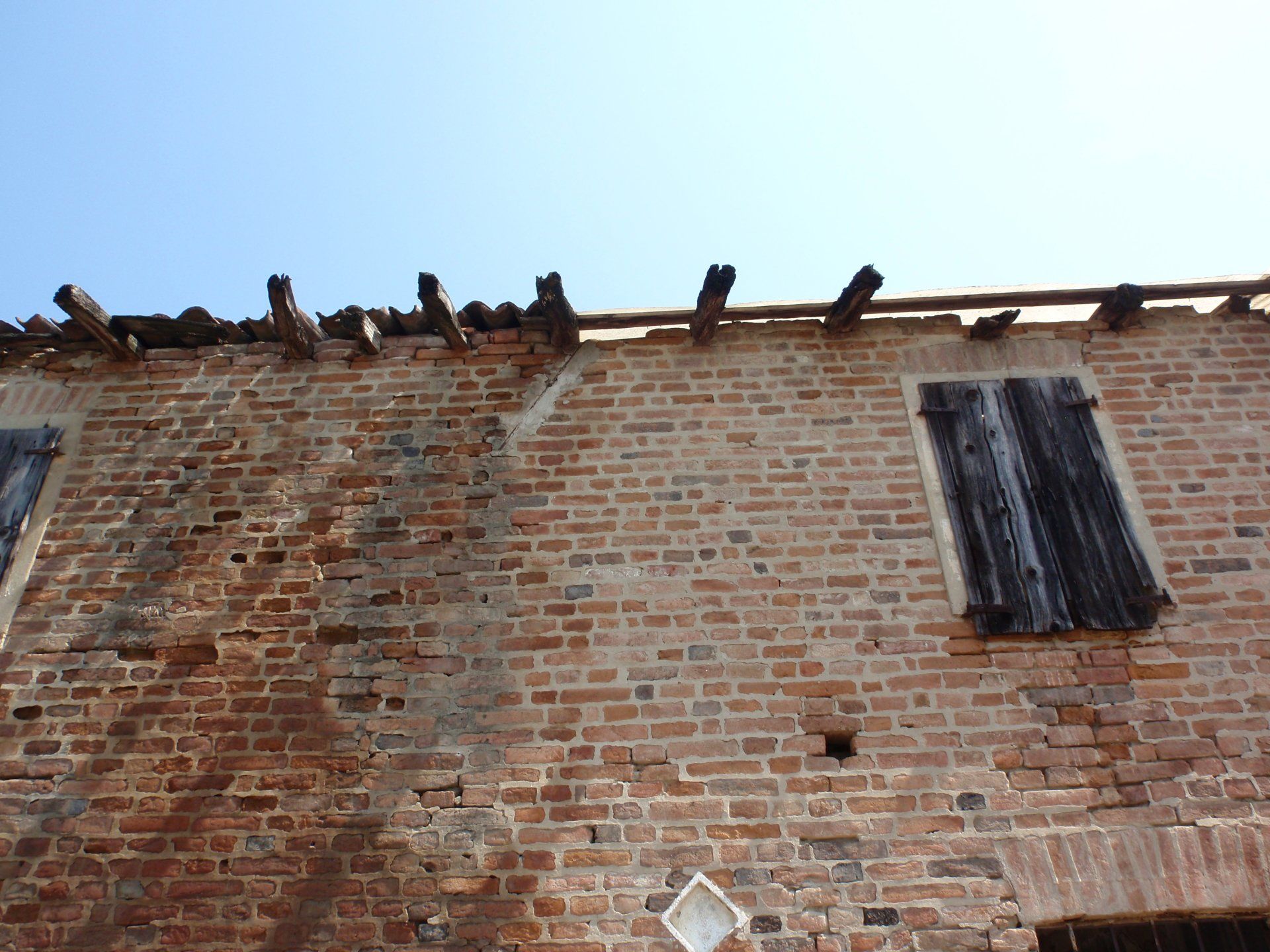

Lack of eaves with degraded exposed beams

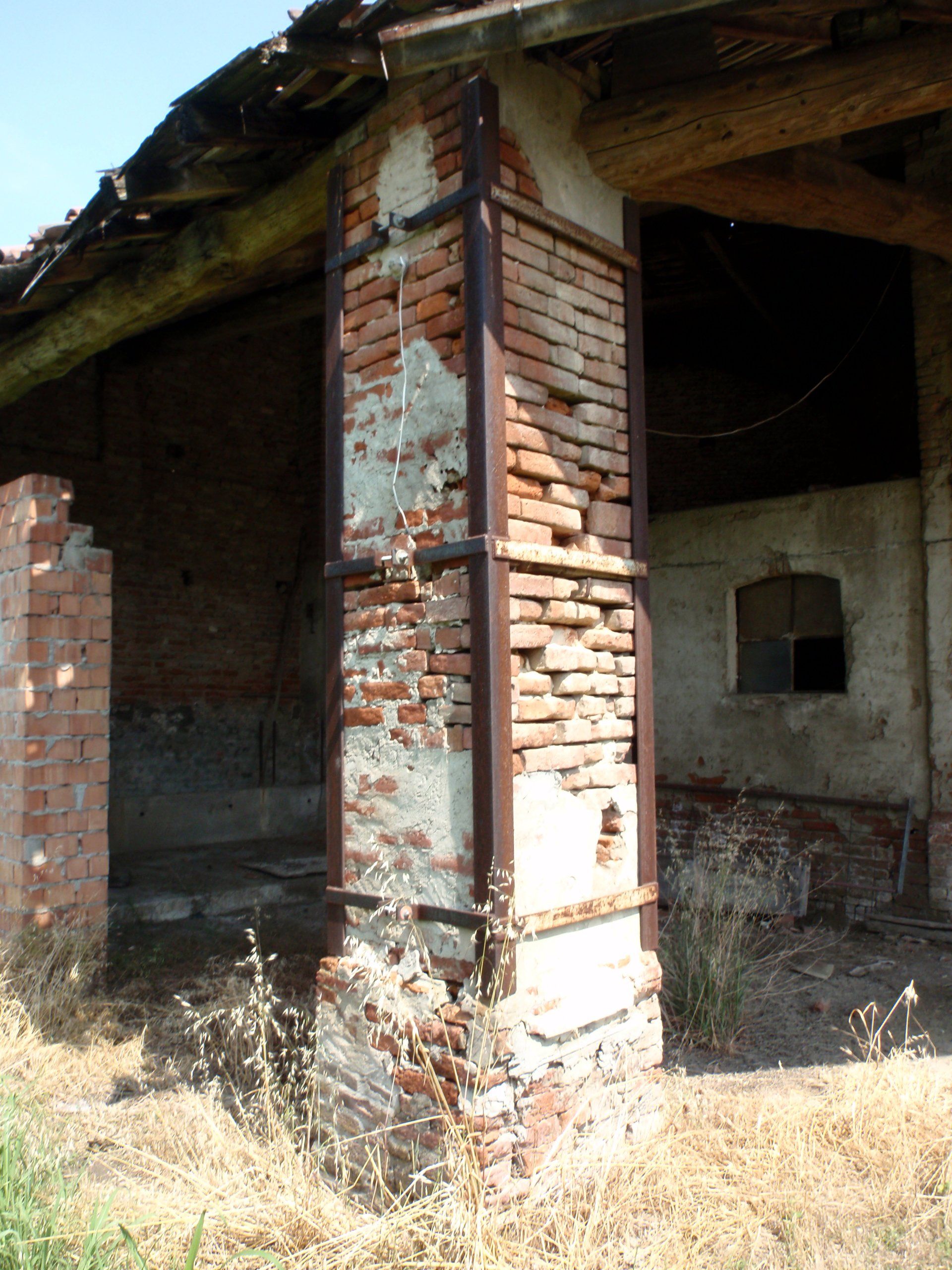

Pillar circled with angular and metal brackets

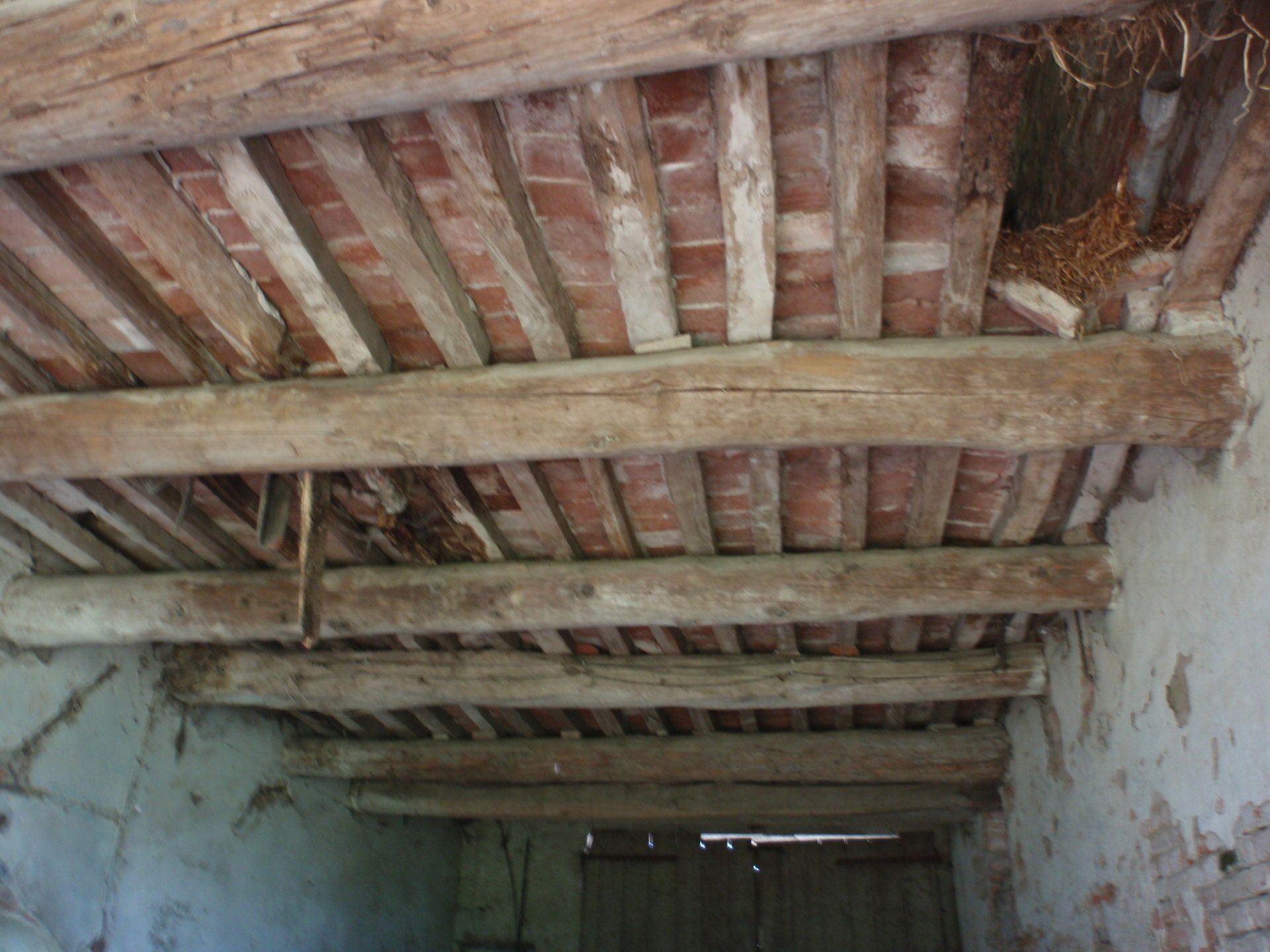

Degradation of the joists and collapse of the slabs of the attic.

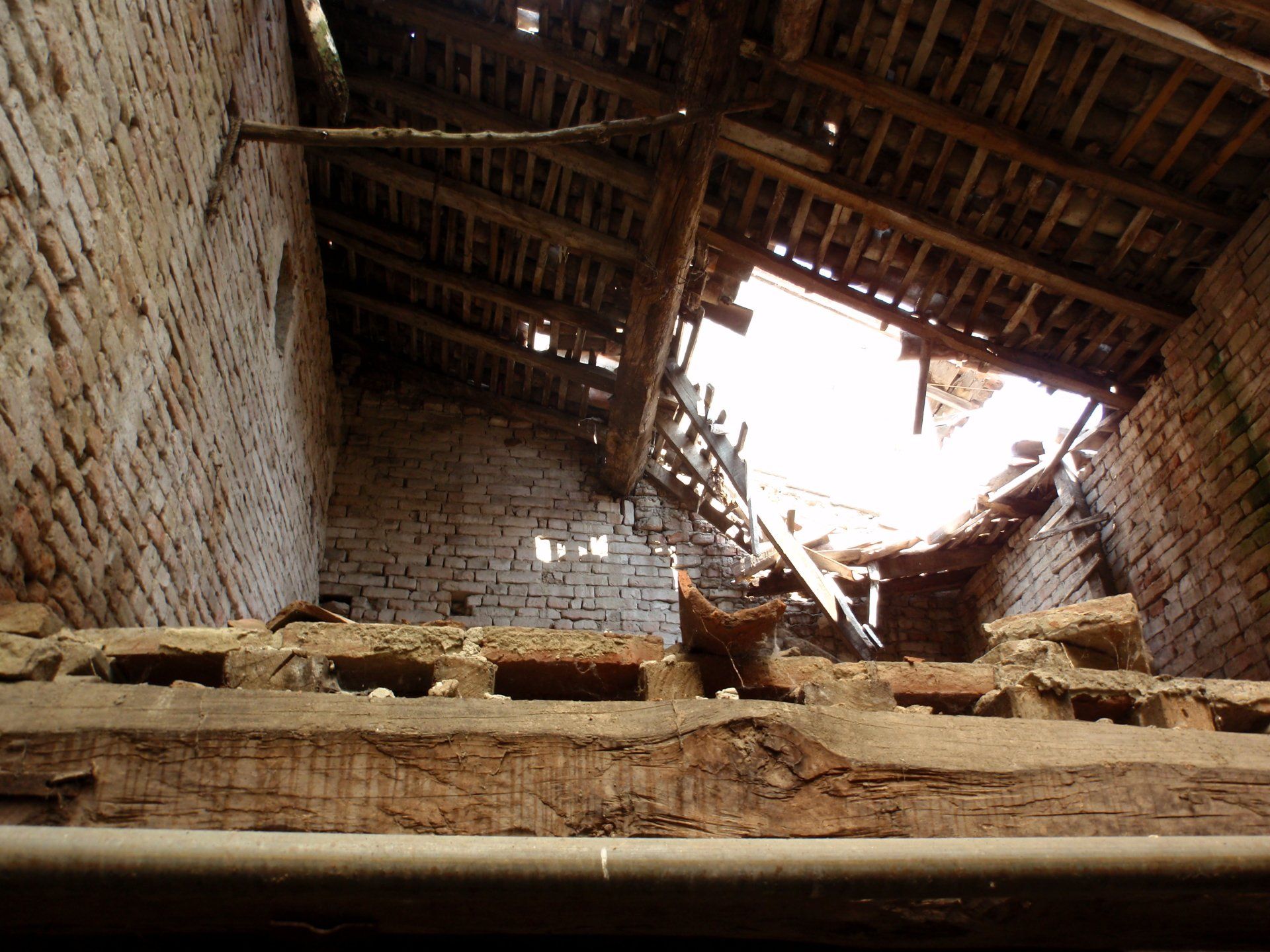

Cover portion collapse.

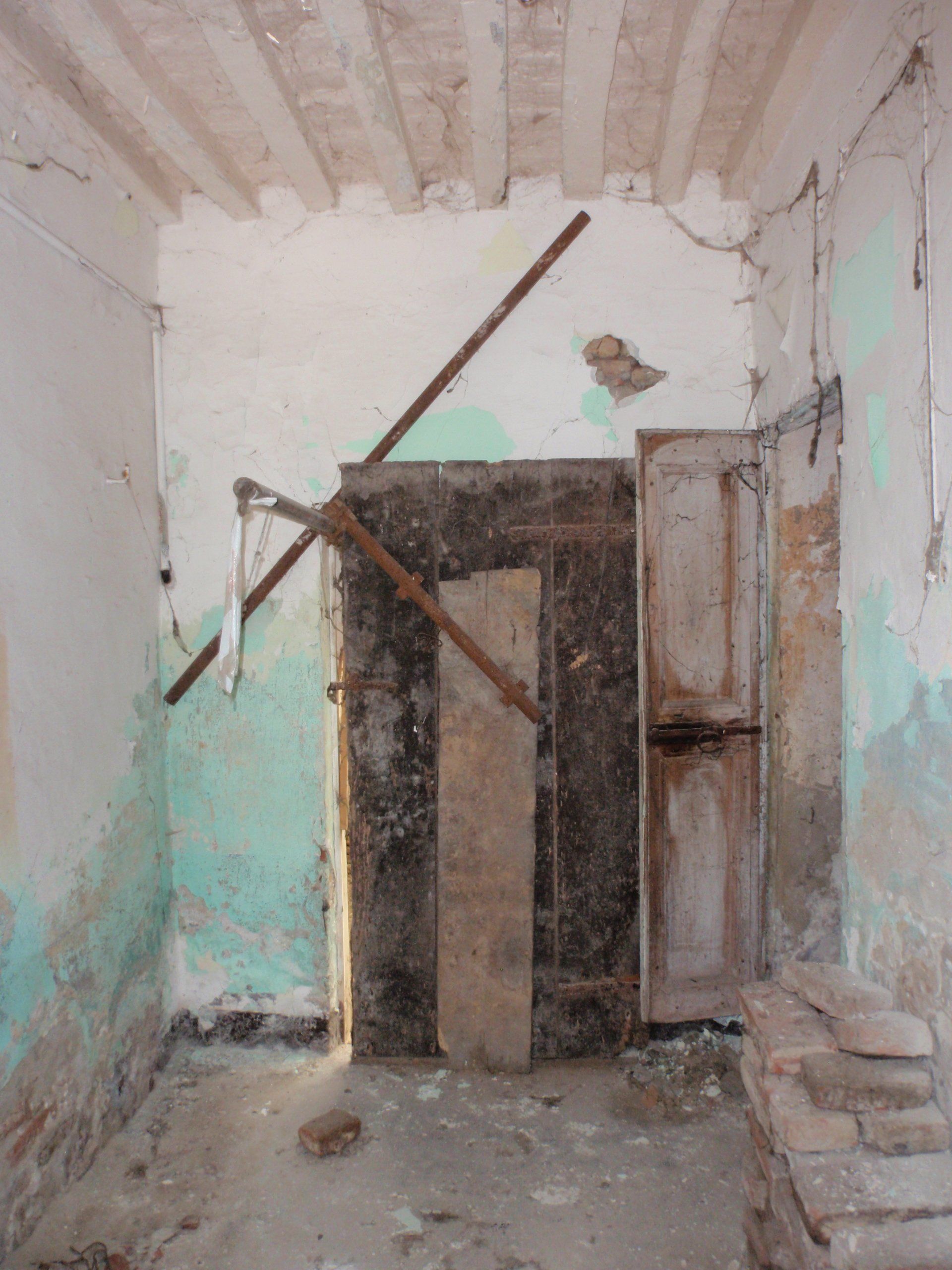

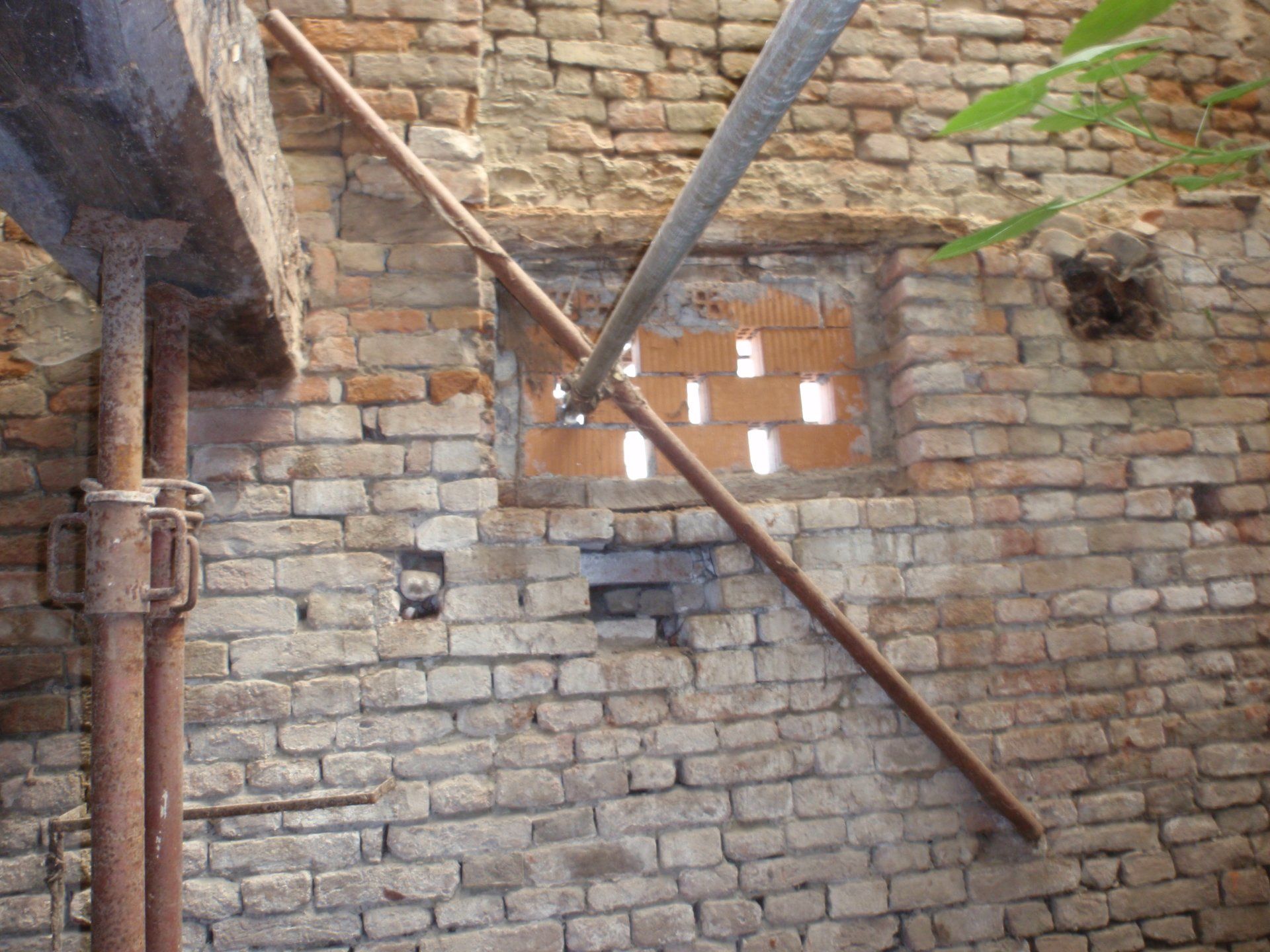

Existing contrast tubes and joints
Existing contrast tubes and joints

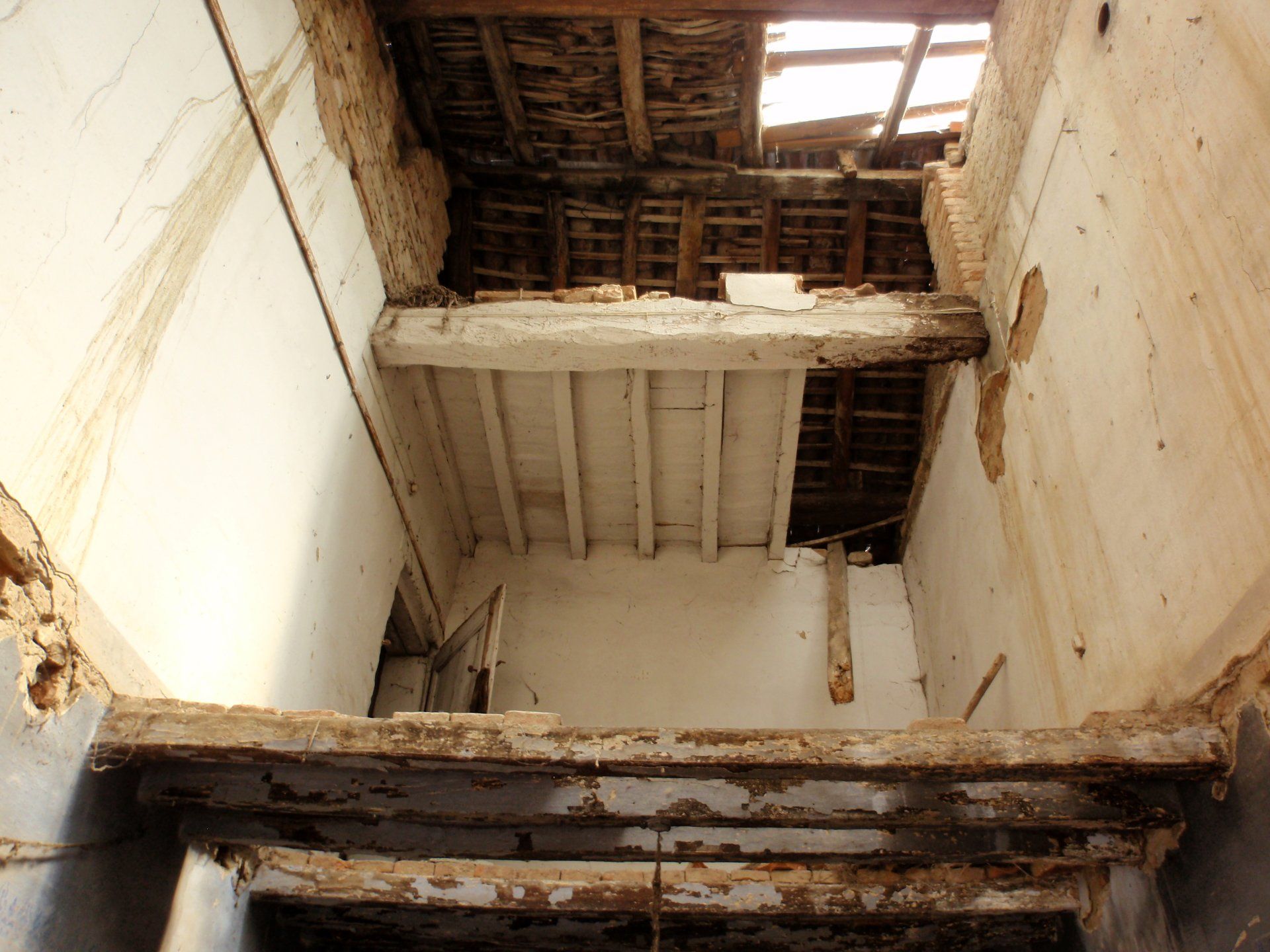

Collapse of the floor

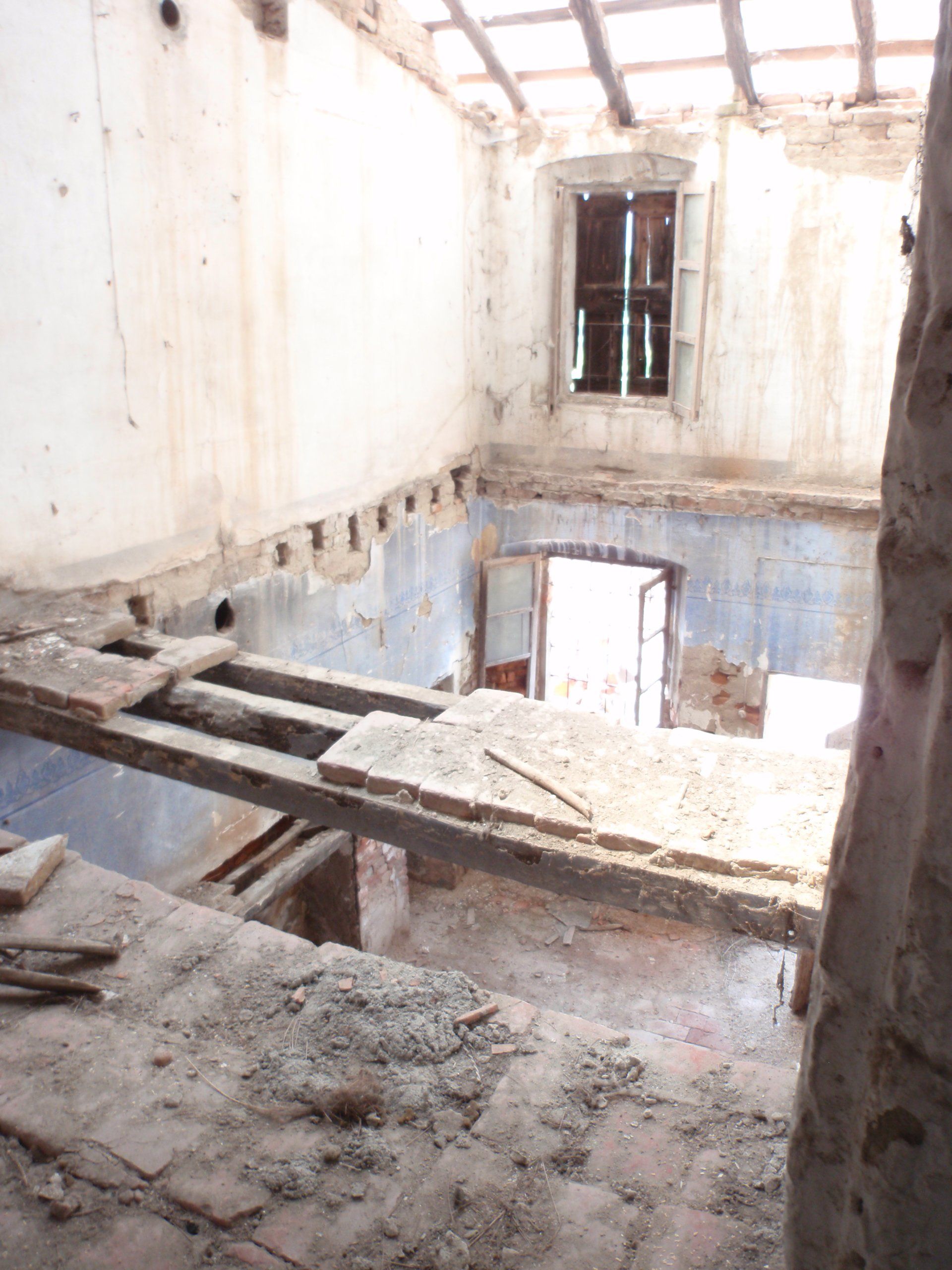

View of the first floor with collapsed attic

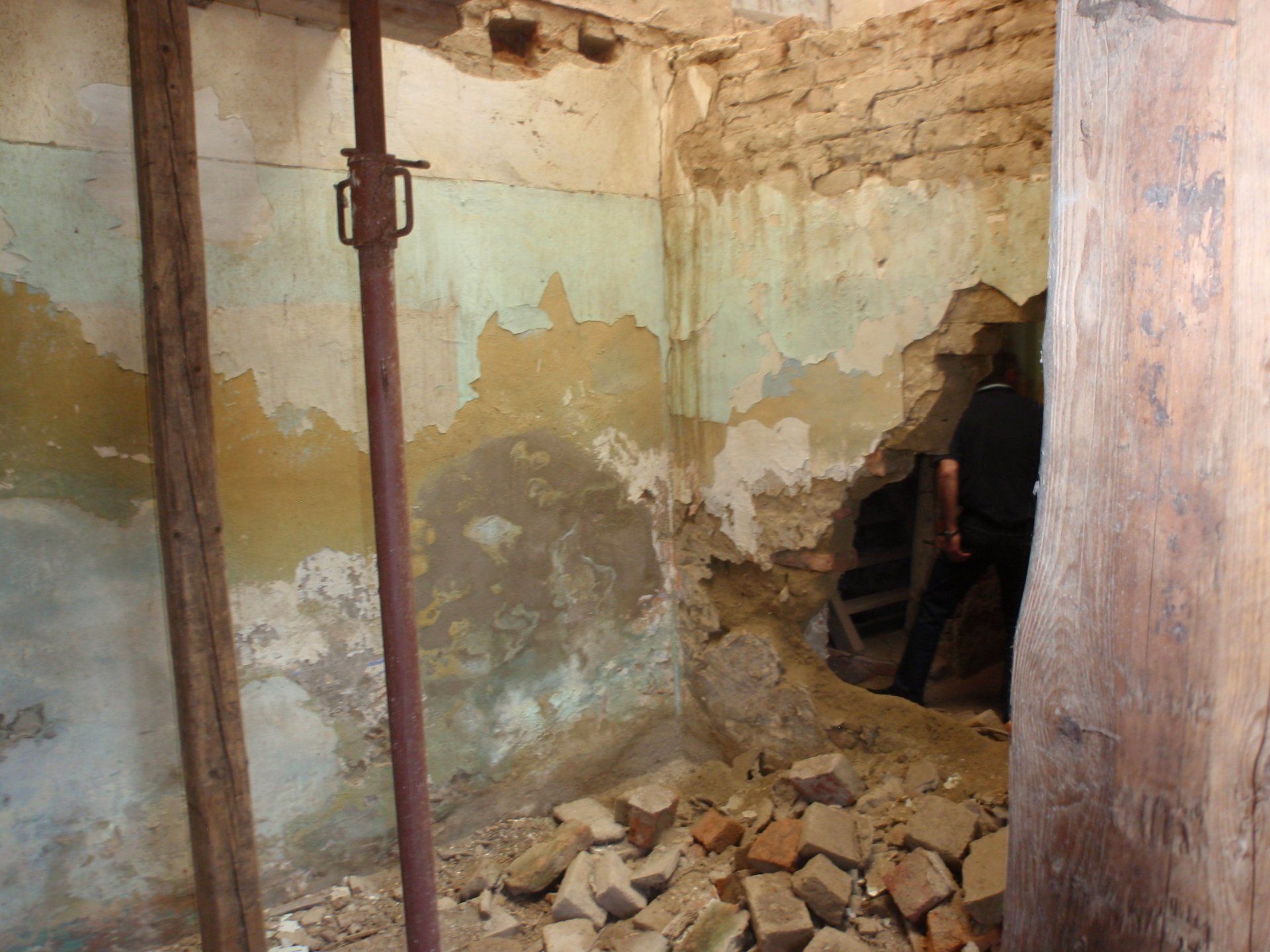

Collapse of the masonry and support struts of the floor

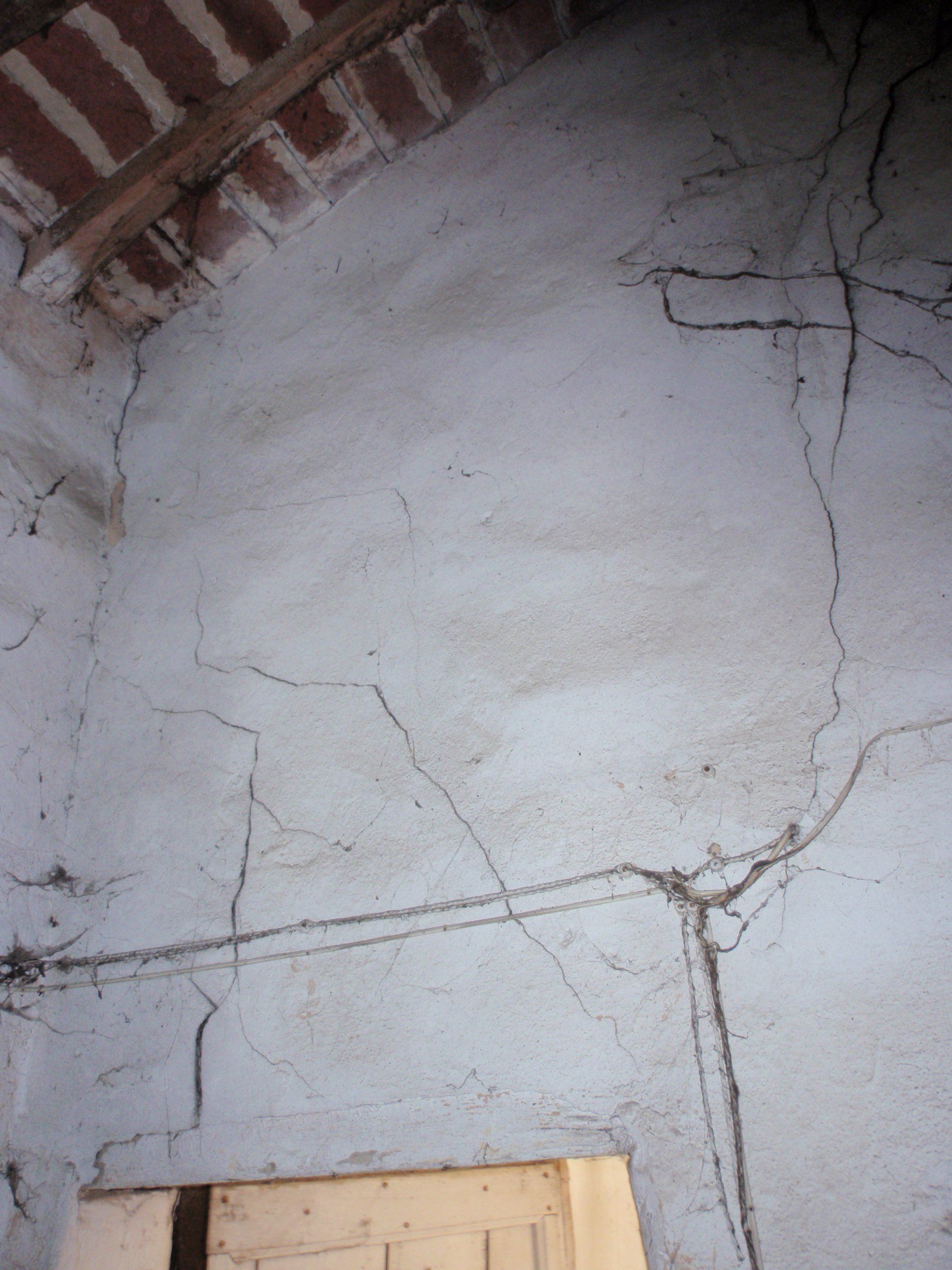

Damage to the masonry

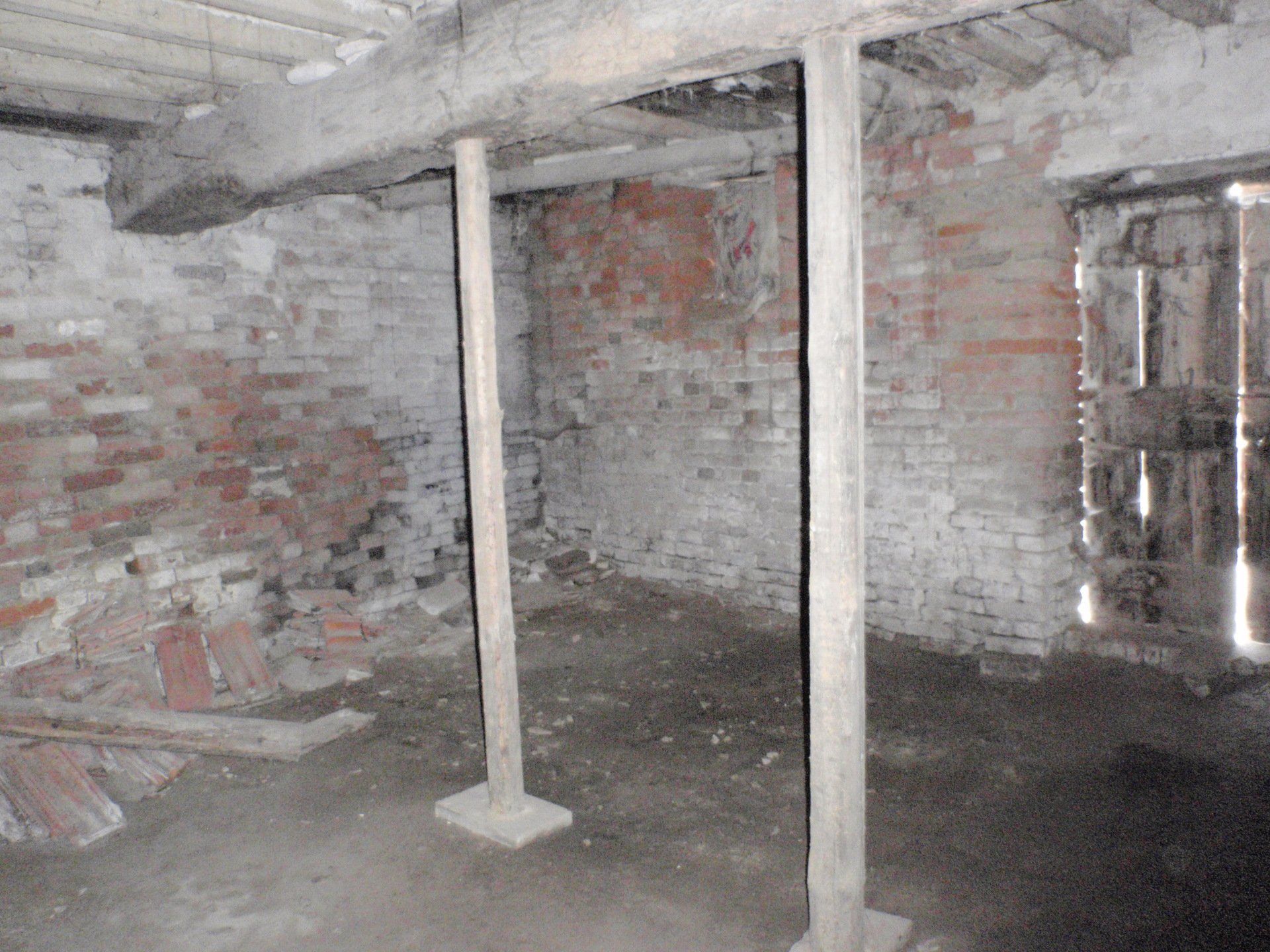

Floor support props
View more
Description: Securing with emergency procedure "Cascina tre madonne" - Scandolara Ravara (CR)

Client: Diocesan Institute for Clergy Support - Via Platina n.15 - Cremona

Services: calculation report, seismic checks by means of non-linear analysis, detailed checks, preliminary, final, executive design and works management

Period: 2015
In depth:

Attachment 1: Relevance of fact

Attachment 2: General draft

Attachment 3: Safety project
