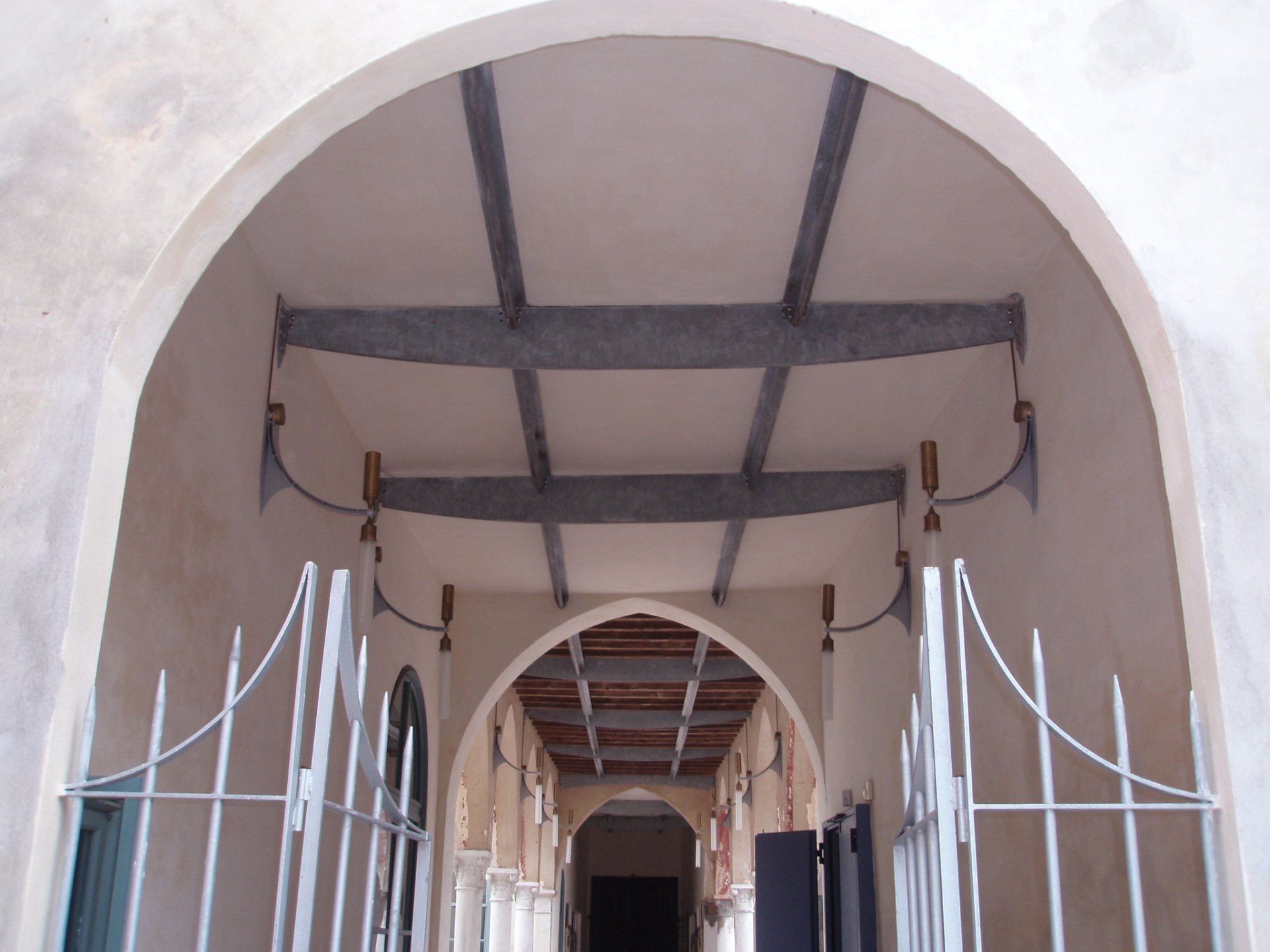

Consolidation of the wooden porch of the portico with metal "T" profiles placed under the rafters, resting on beams made of shaped steel plates embedded in the wall.

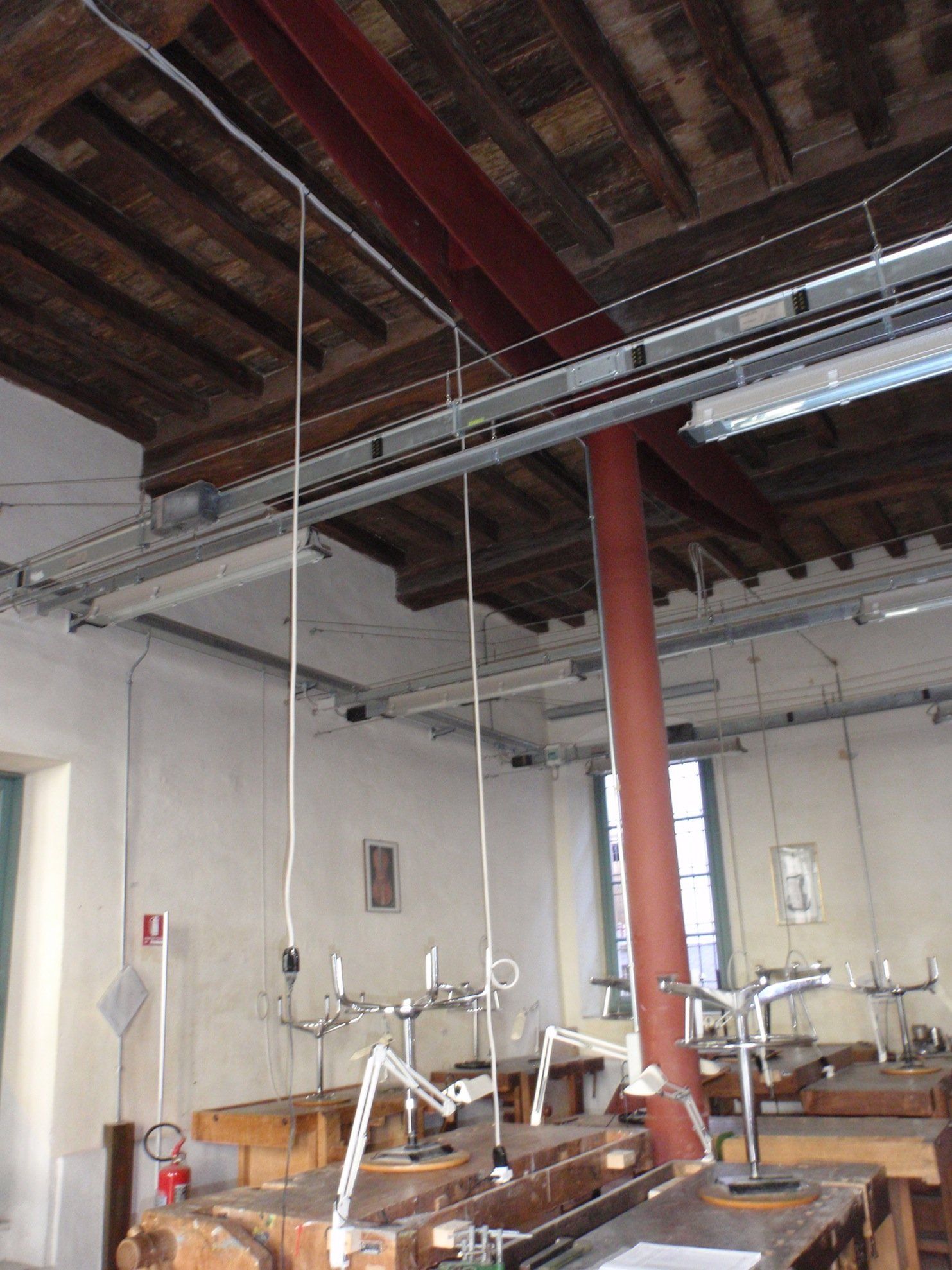

Steel structure with a candlestick supporting the three wooden beams of the floor.

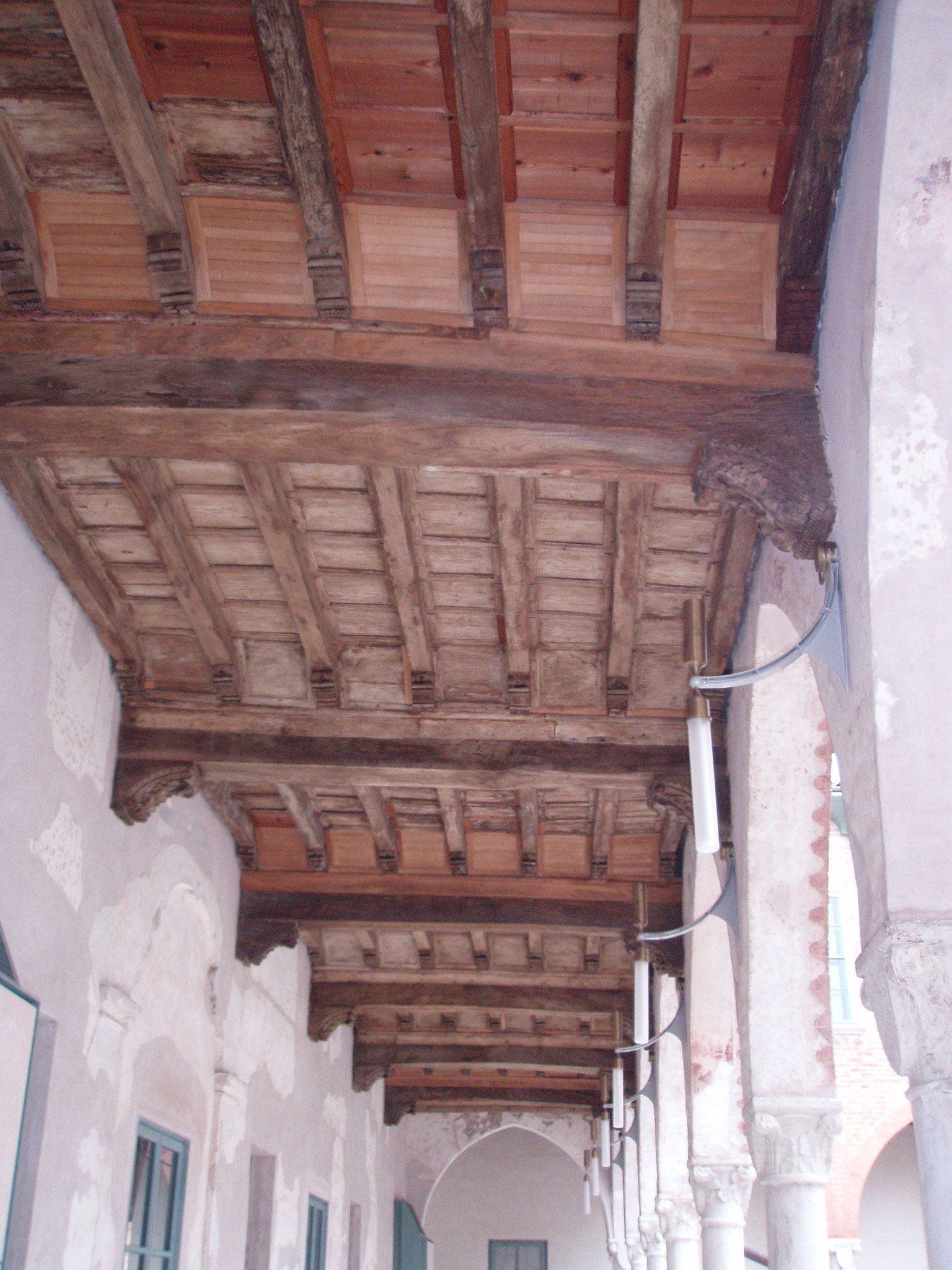

Consolidation of the wooden floor by inserting new reinforcement beams and 4 HEM 100 profiles on the existing deteriorated beams.

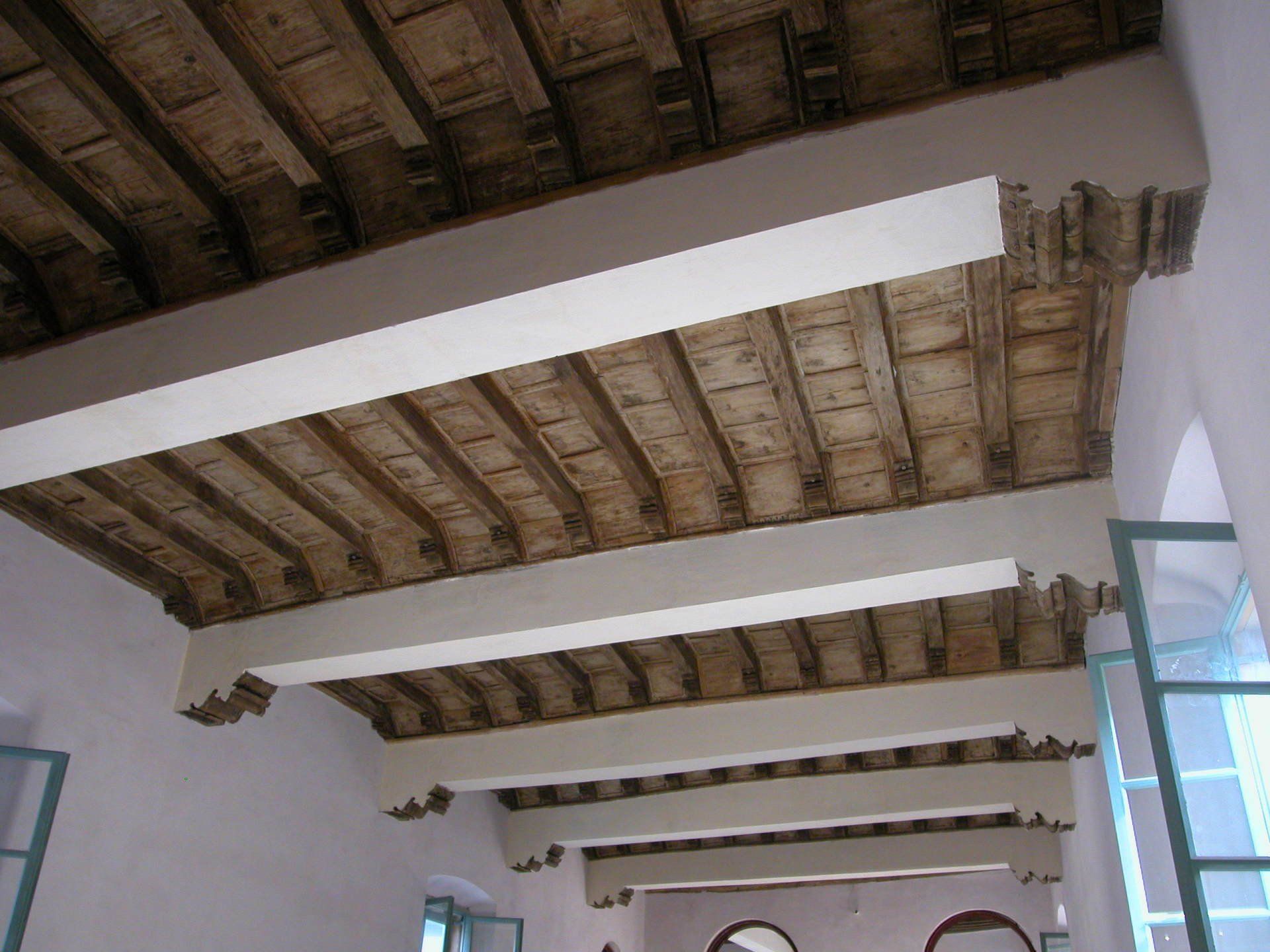

Consolidation of wooden floors.

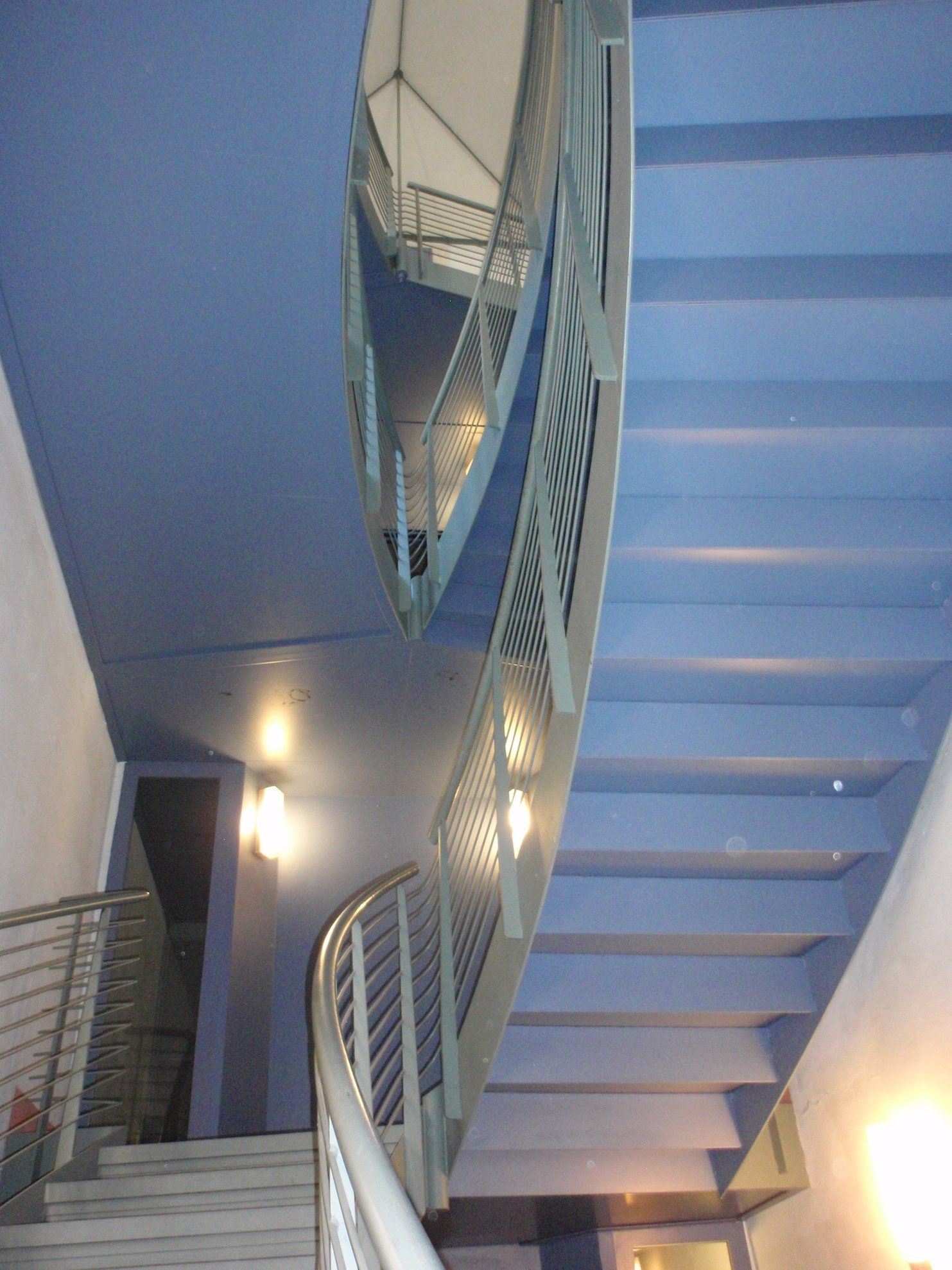

Metal ladder consisting of metal sheet steps connected to each other by "L" shaped profiles and welded to the steel sheet leg loops.

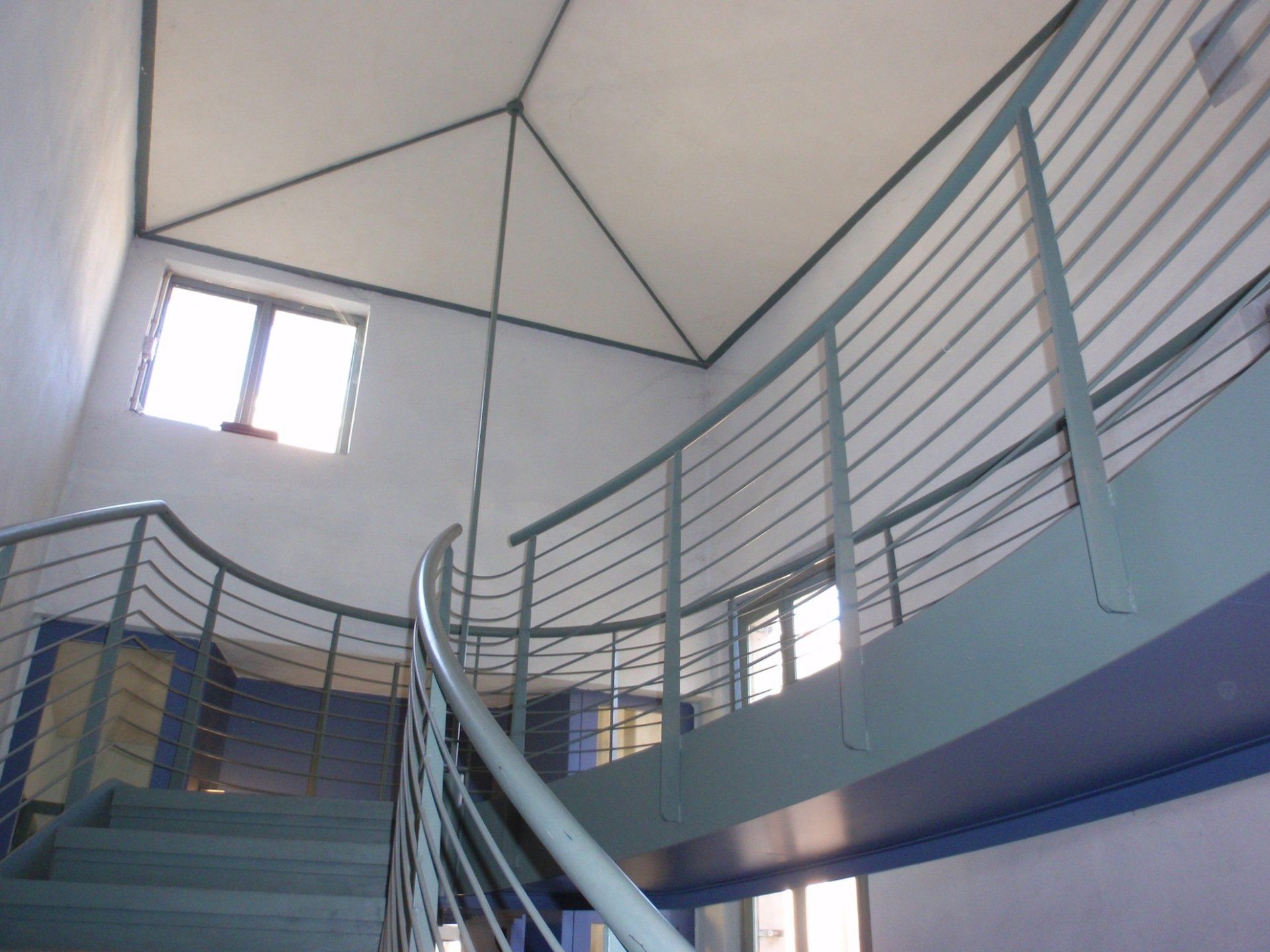

Particular last ramp of the staircase hung with two tie rods ø 24 to a vaulted structure made up of steel profiles anchored to the masonry.

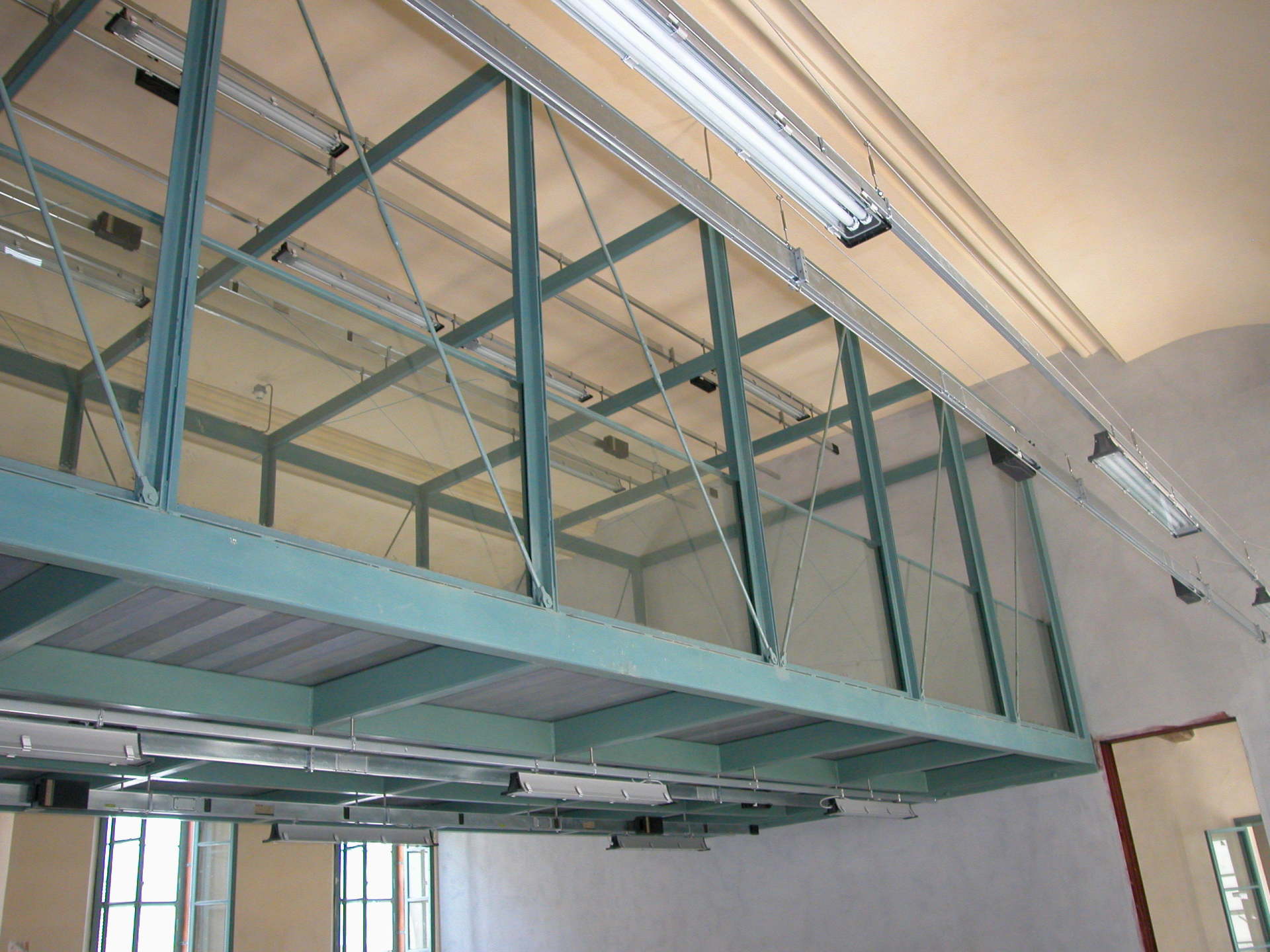

Mezzanine with structure with reticular beams and steel tie-rods.

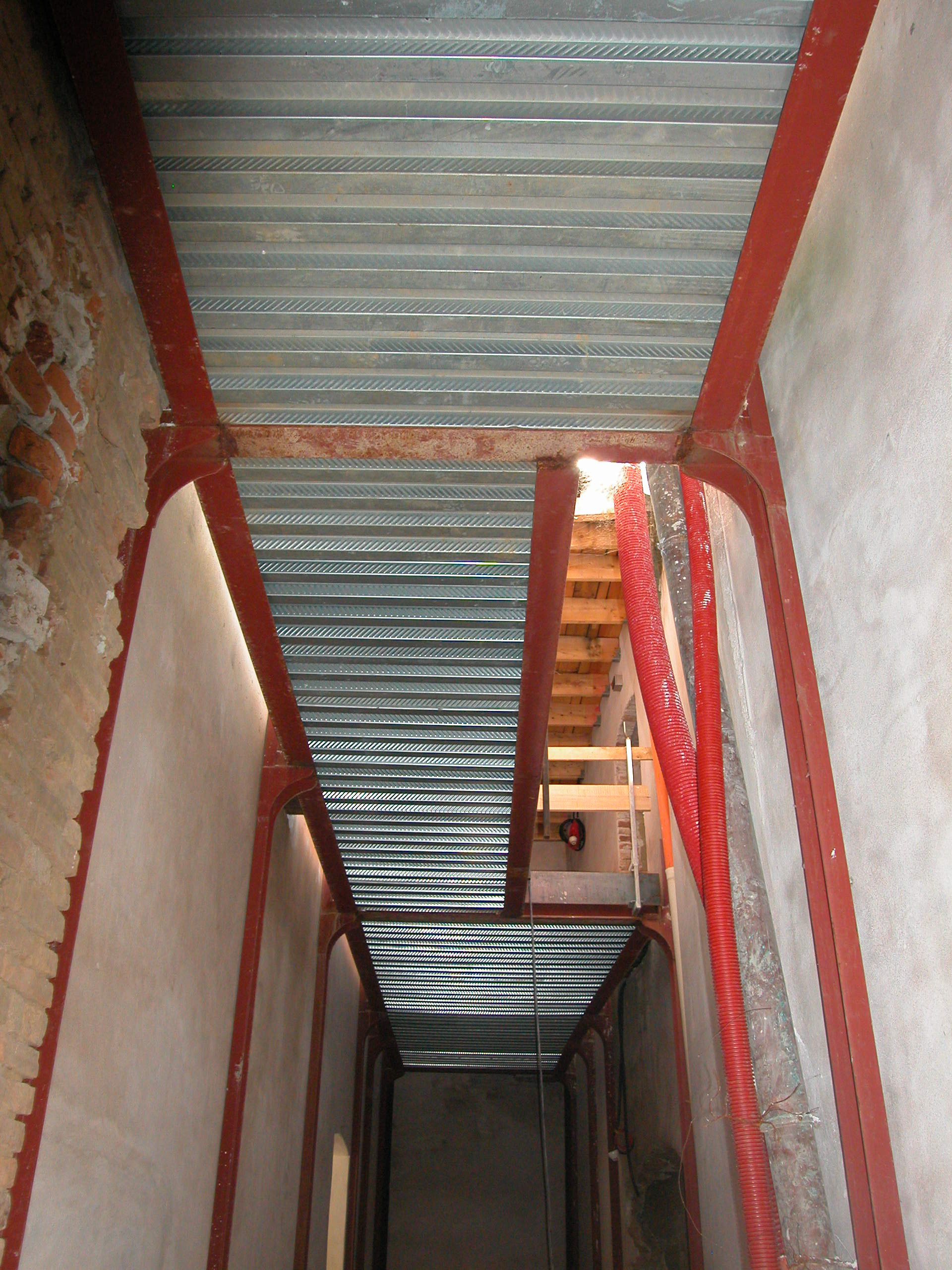

New cavedio slab consisting of a slab made of a Hi-Bond corrugated sheet that works together with a concrete casting, the structure is placed on shelves fixed to vertical uprights anchored to the wall.
Elevator consisting of "castle" in vertical metal tubulars and horizontal stiffeners, masonry pit bottom with concrete foundation plate

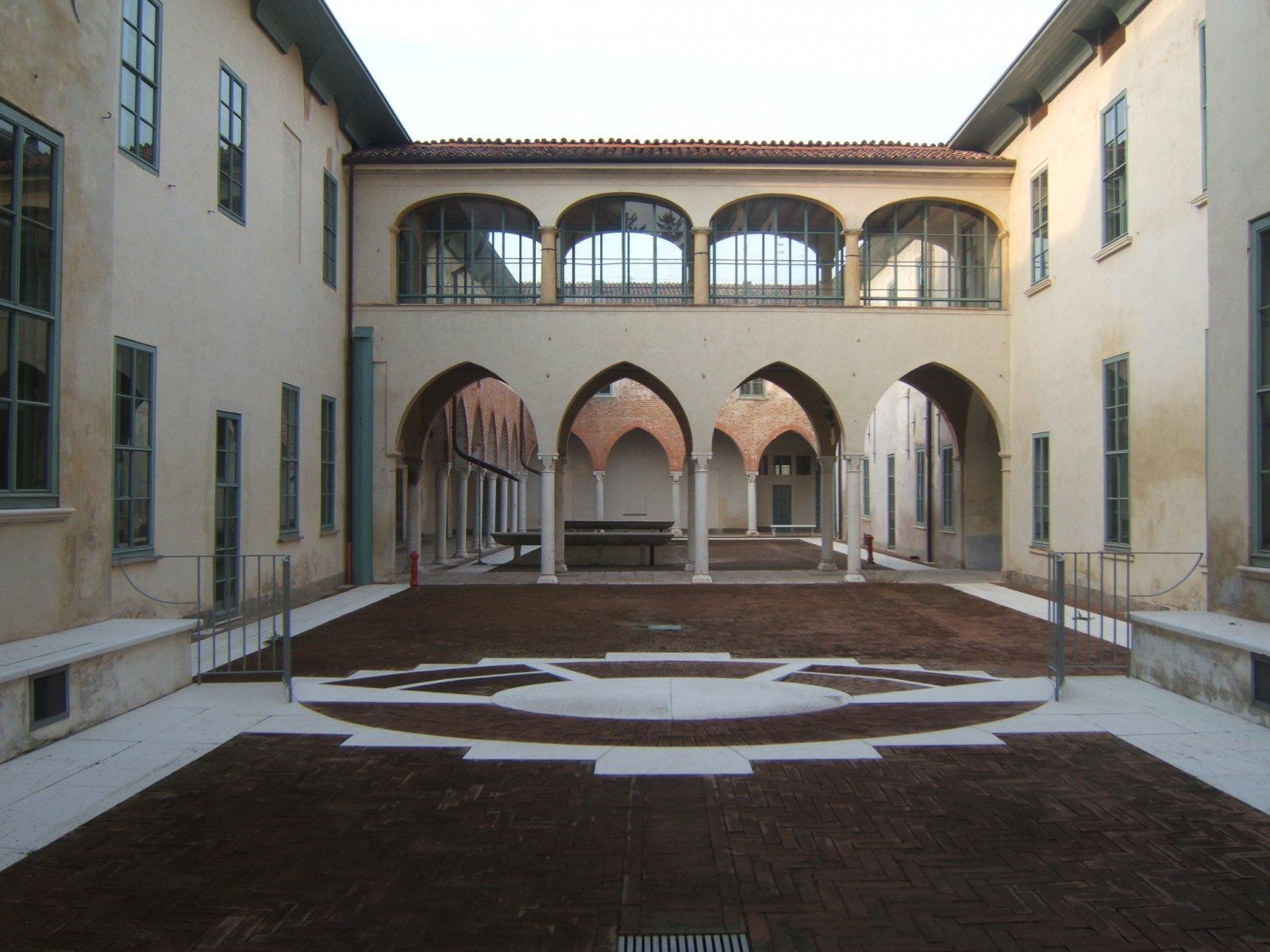

Internal courtyard view after restoration.
Internal courtyard view after restoration.

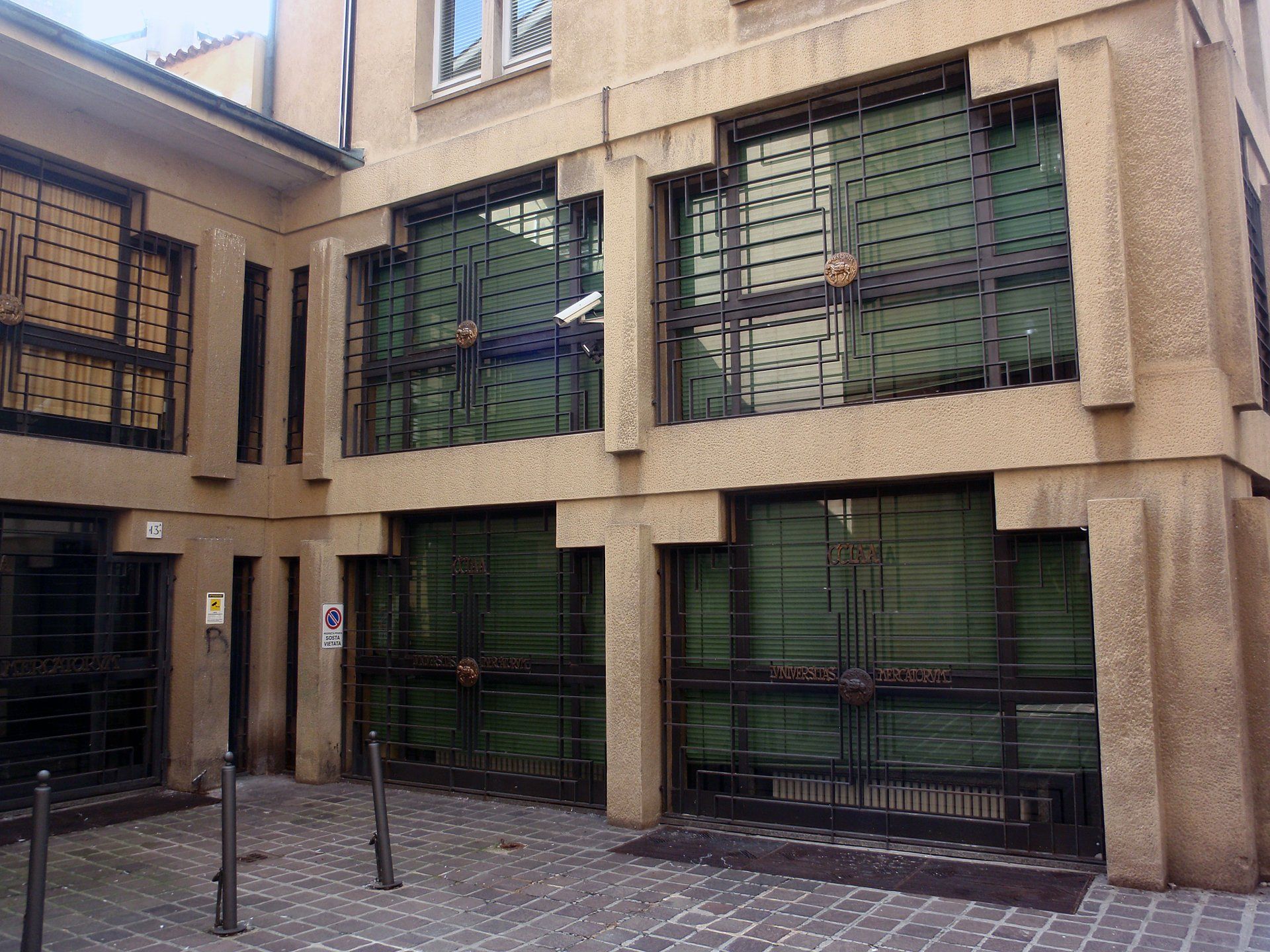

Camera di commercio di Cremona - via Lanaioli

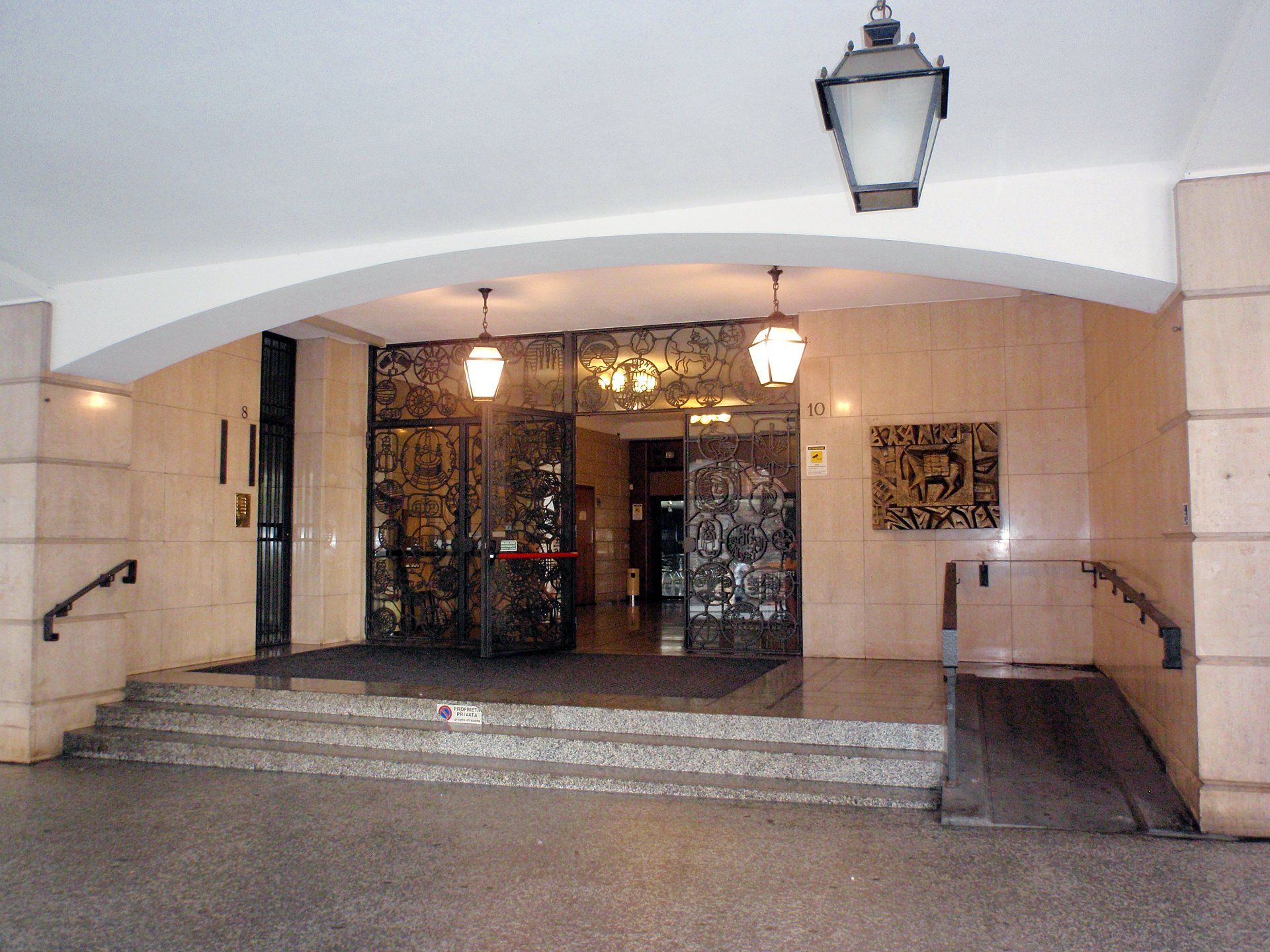

Camera di commercio di Cremona - via Baldesio

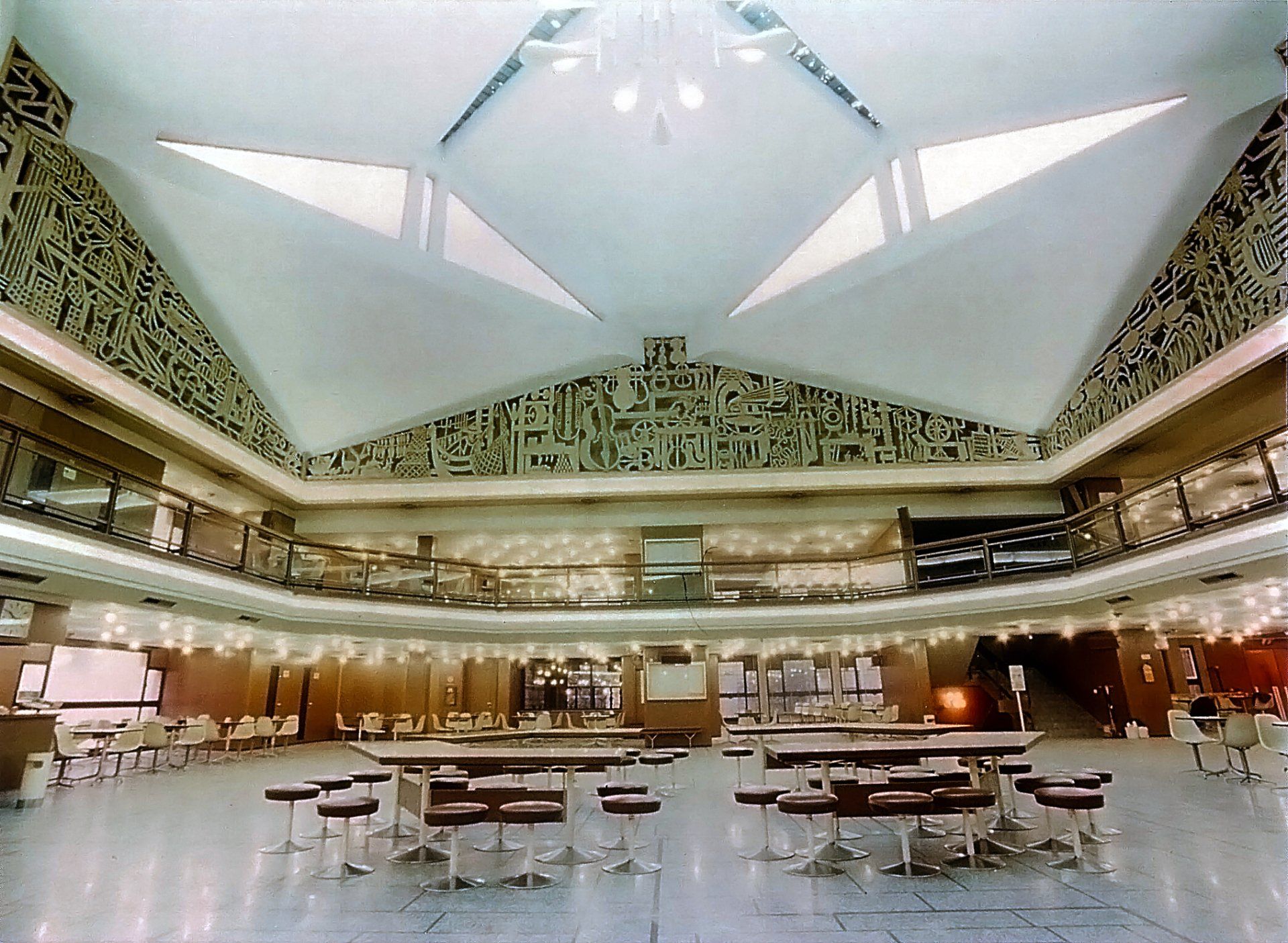

CCIAA - Interno sala borse

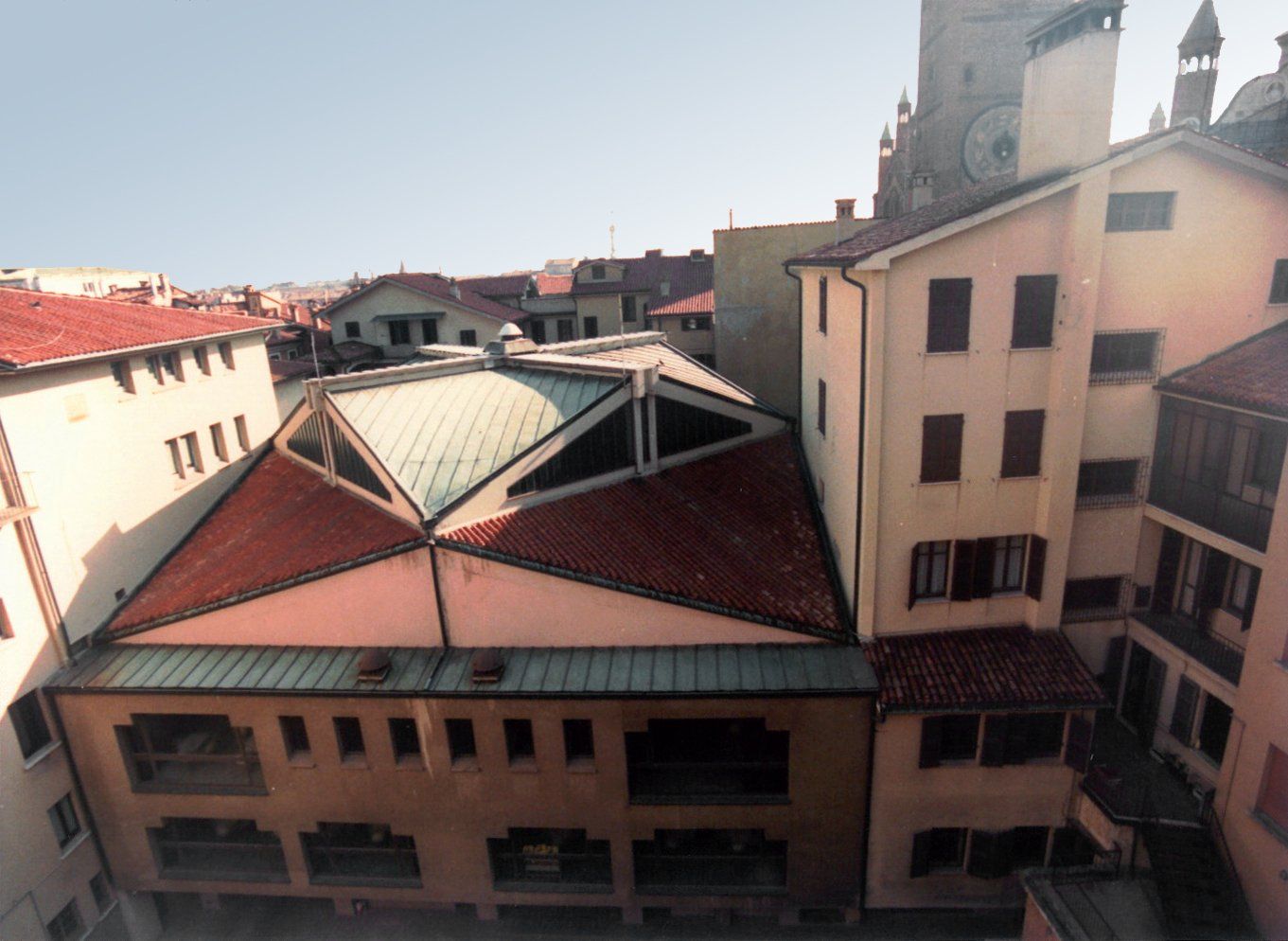

CCIAA - Foto copertura sala borse

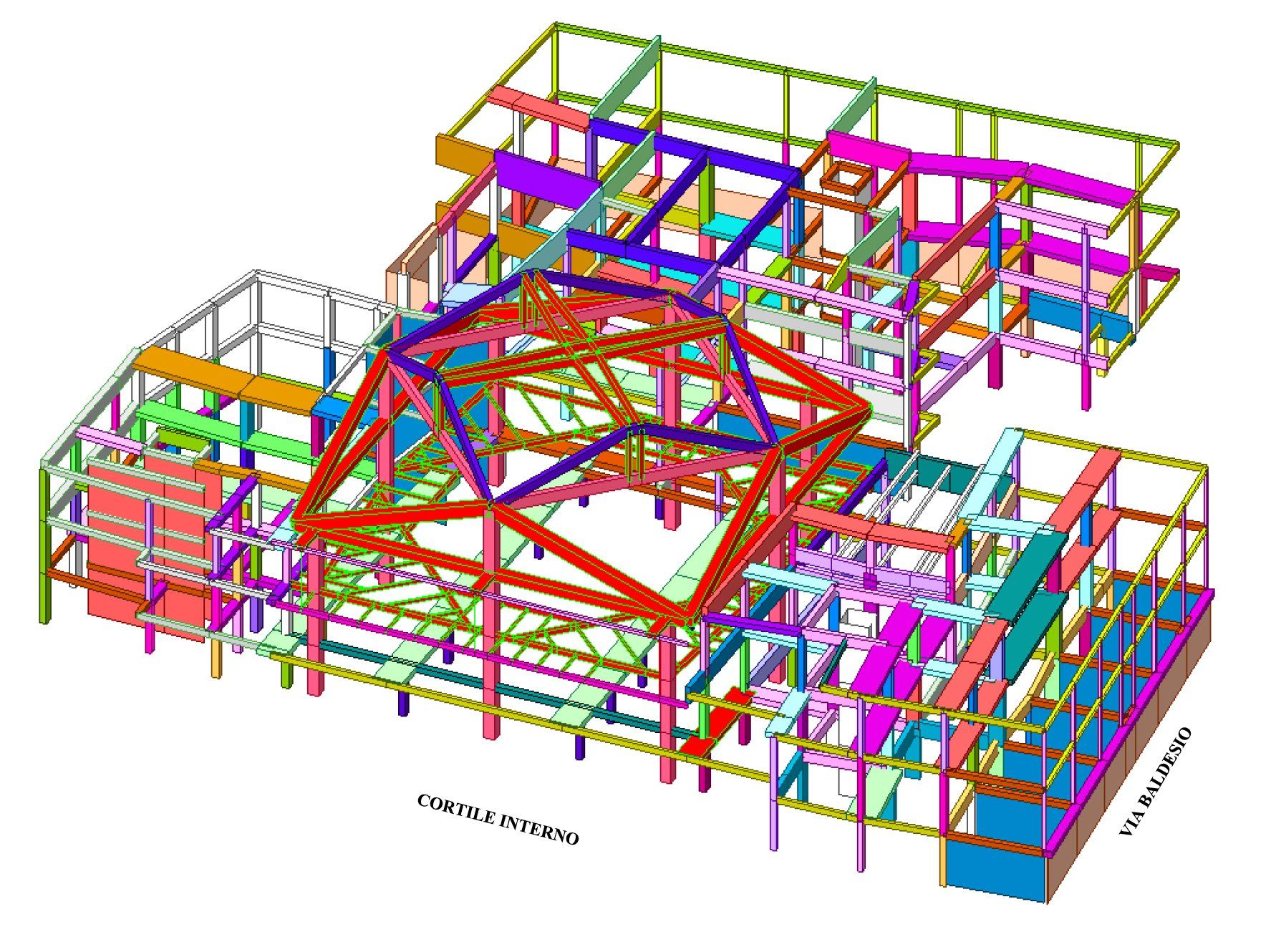

Modello di calcolo con Midas Gen

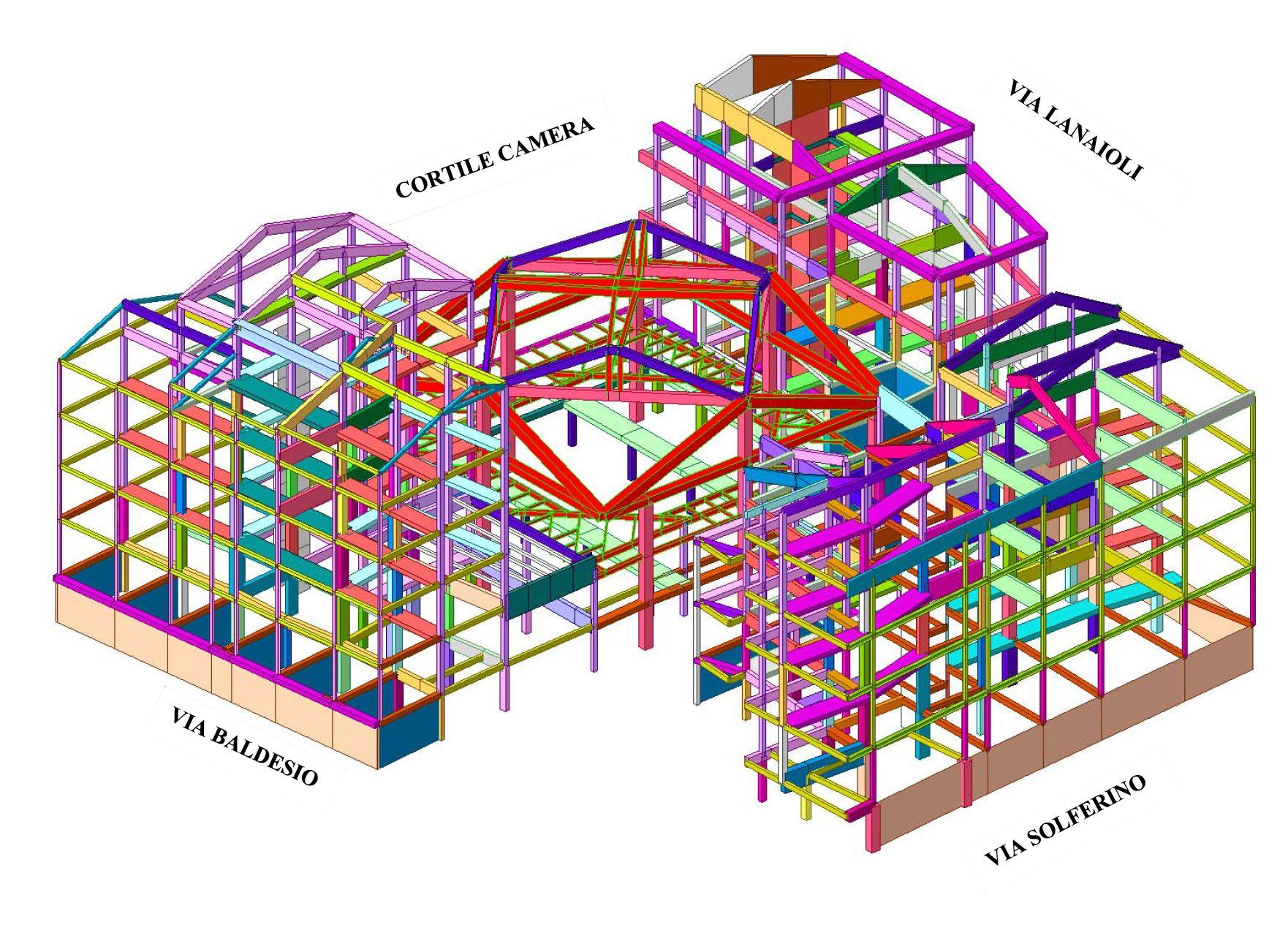

Modello di calcolo con Midas Gen

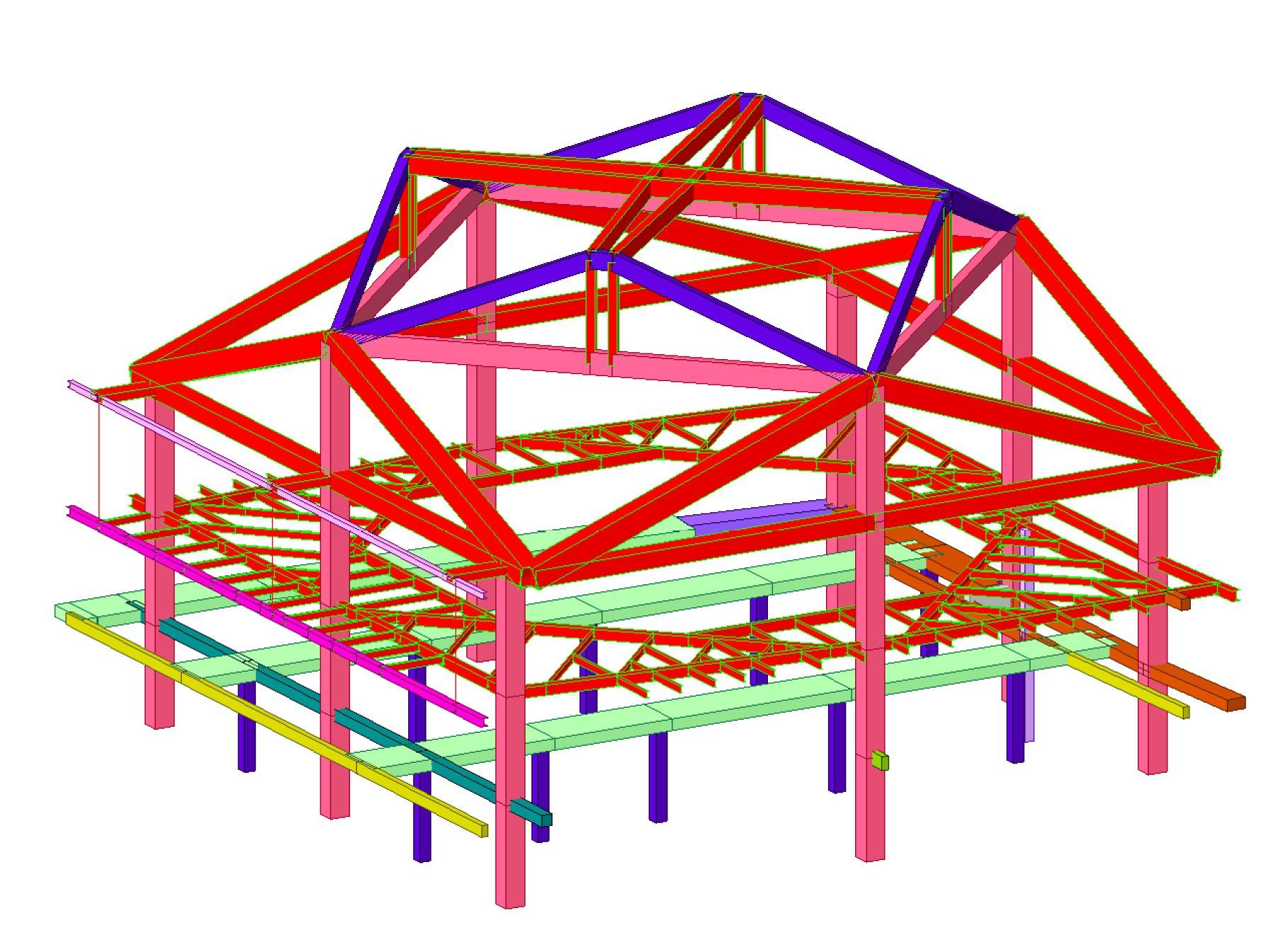

Copertura sala borsa - Modello di calcolo con Midas Gen
Particolare copertura sala borsa - Modello di calcolo con Midas Gen
Particolare balconata sala borsa - Modello di calcolo con Midas Gen
Esempio di calcolo di resistenza al fuoco di un pilastro
Esempio di calcolo di resistenza al fuoco di una trave
