Apartment building "Dante 63"

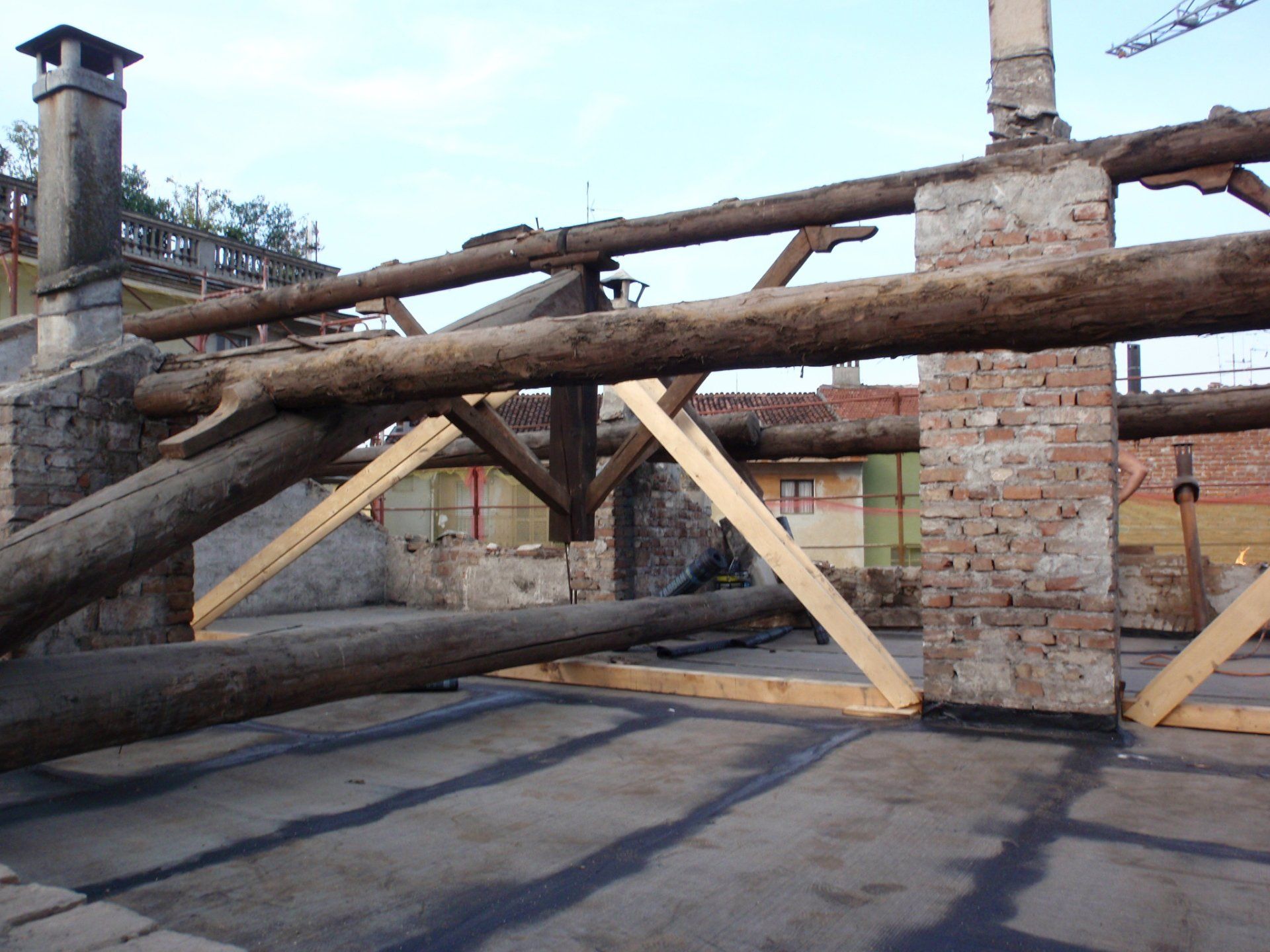

View of the main structure of the roof and waterproofing of the attic floor made with sheath

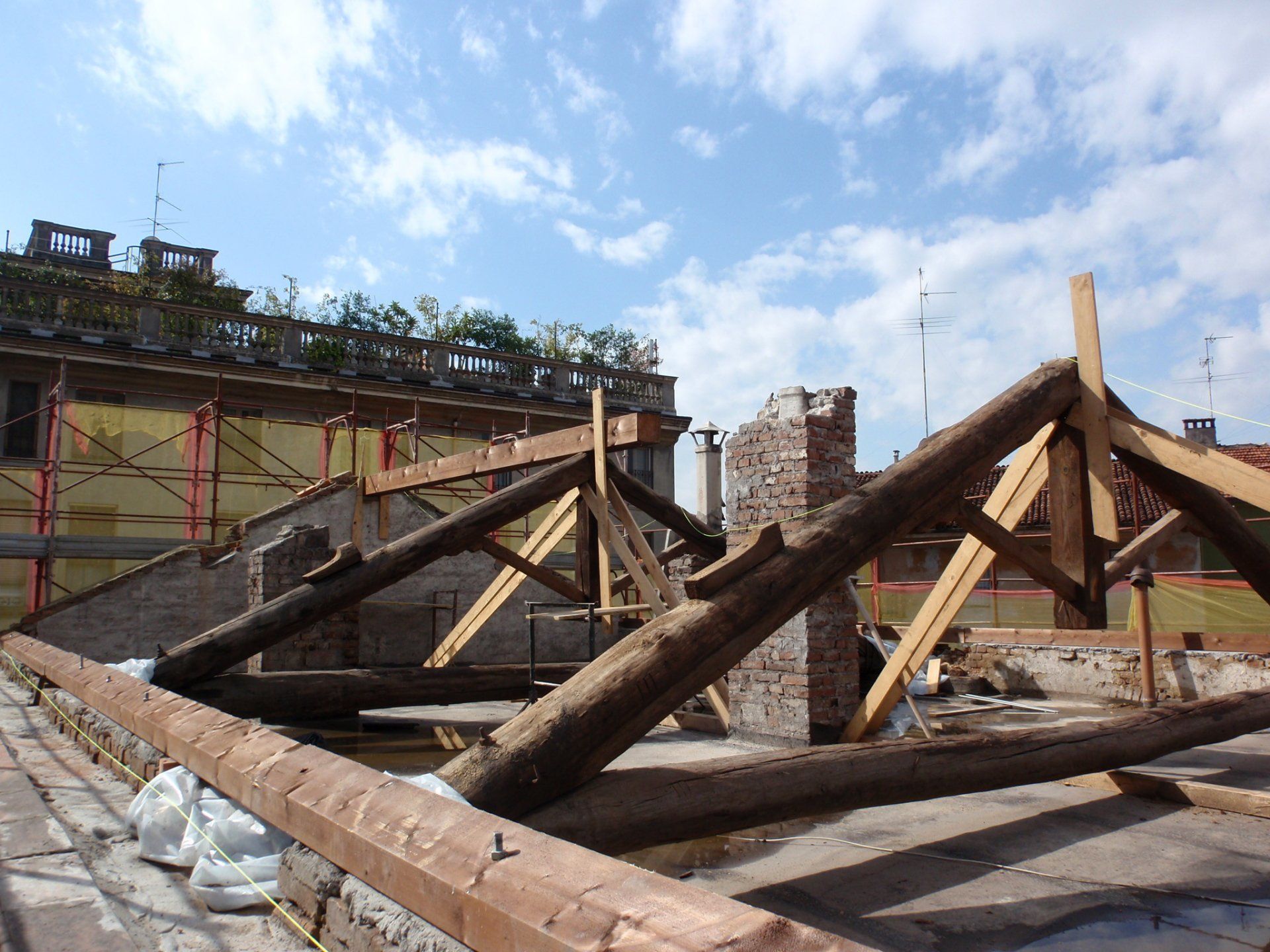

Particular new sleeping perimeter in wood and positioning new ridge beam

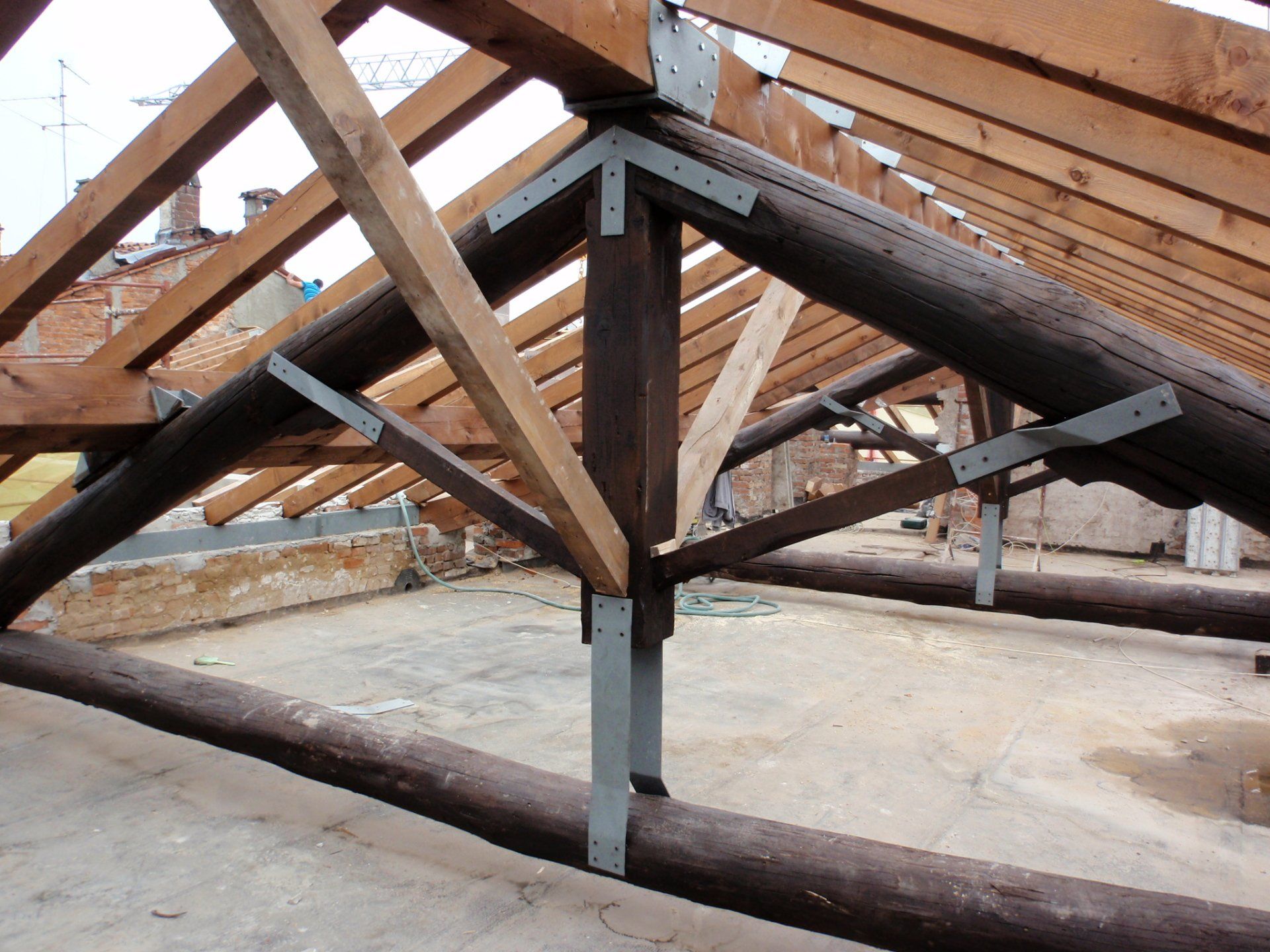

Particular metal elements of connecting truss in existing wood

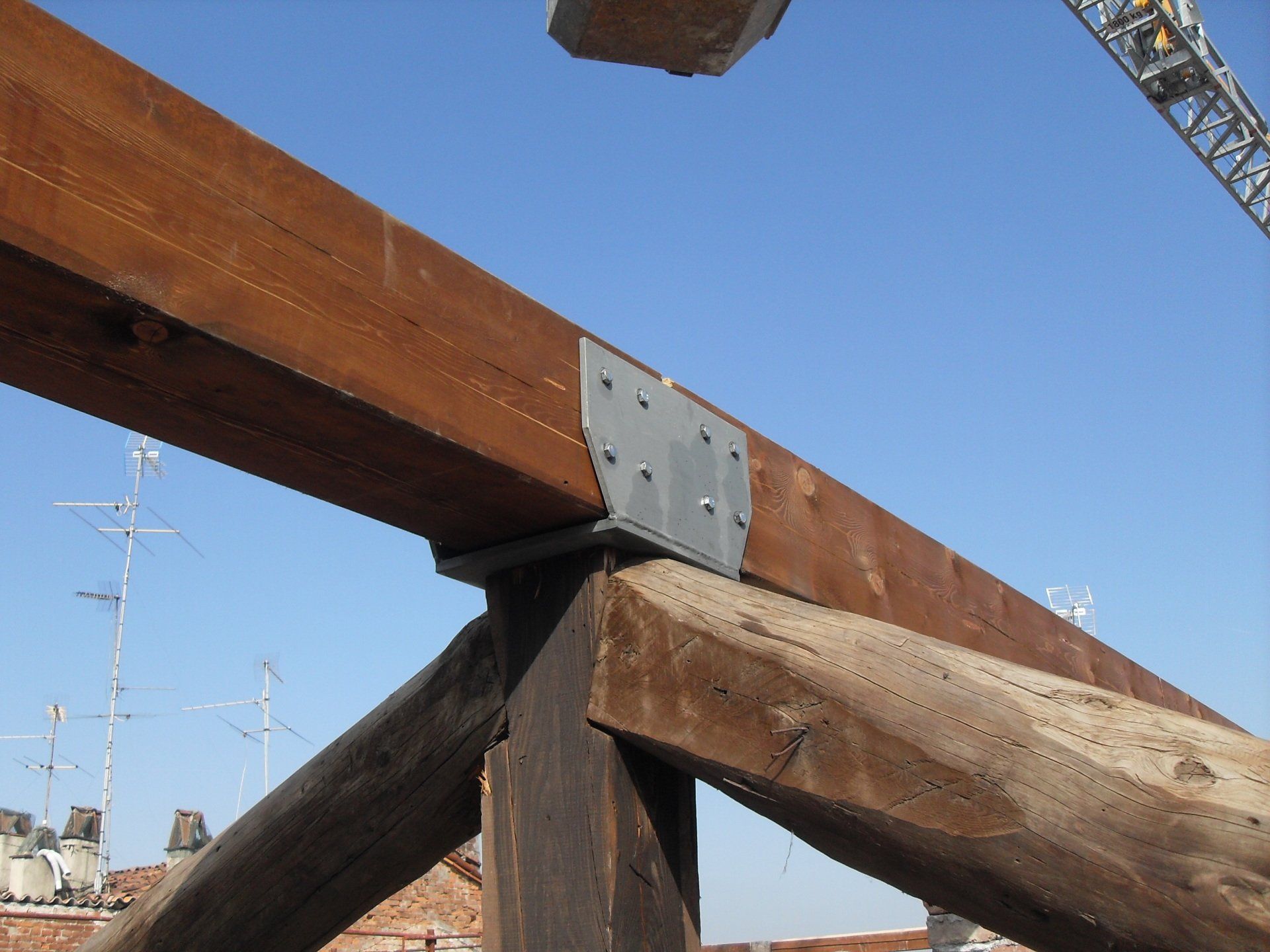

Particular connecting element for ridge beam and truss

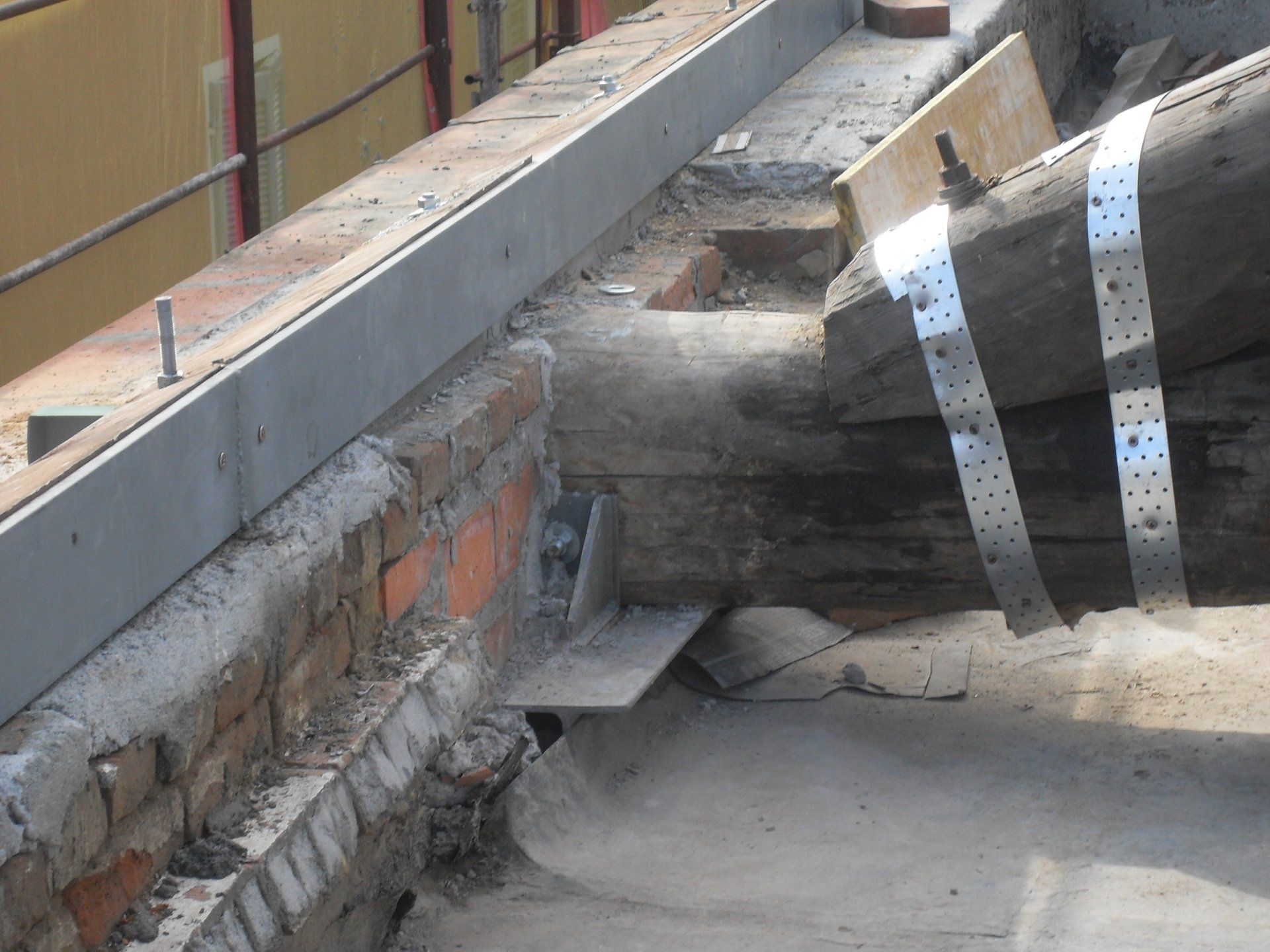

Headboard truss support

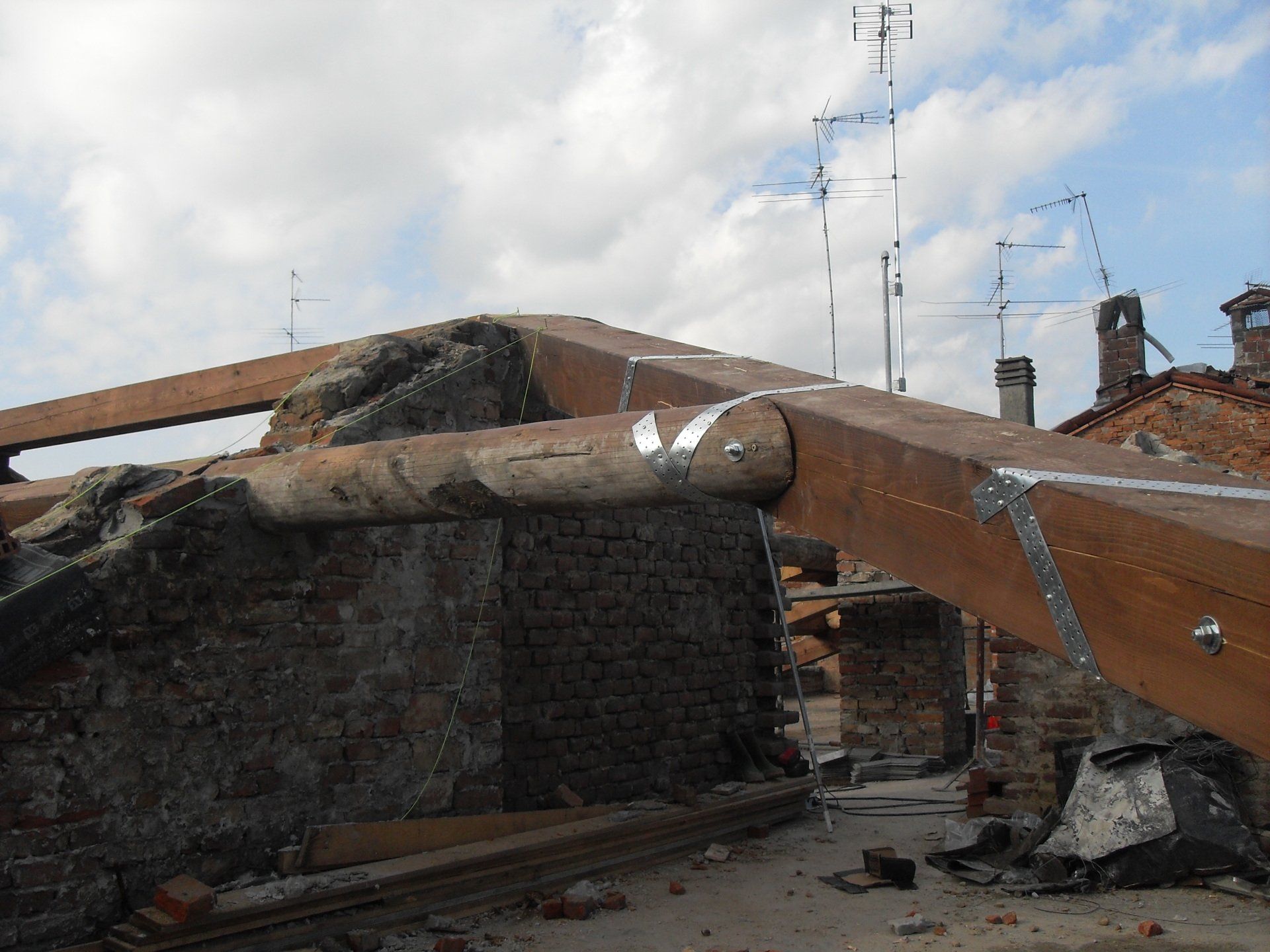

Particular connection of new beam to the existing terzera

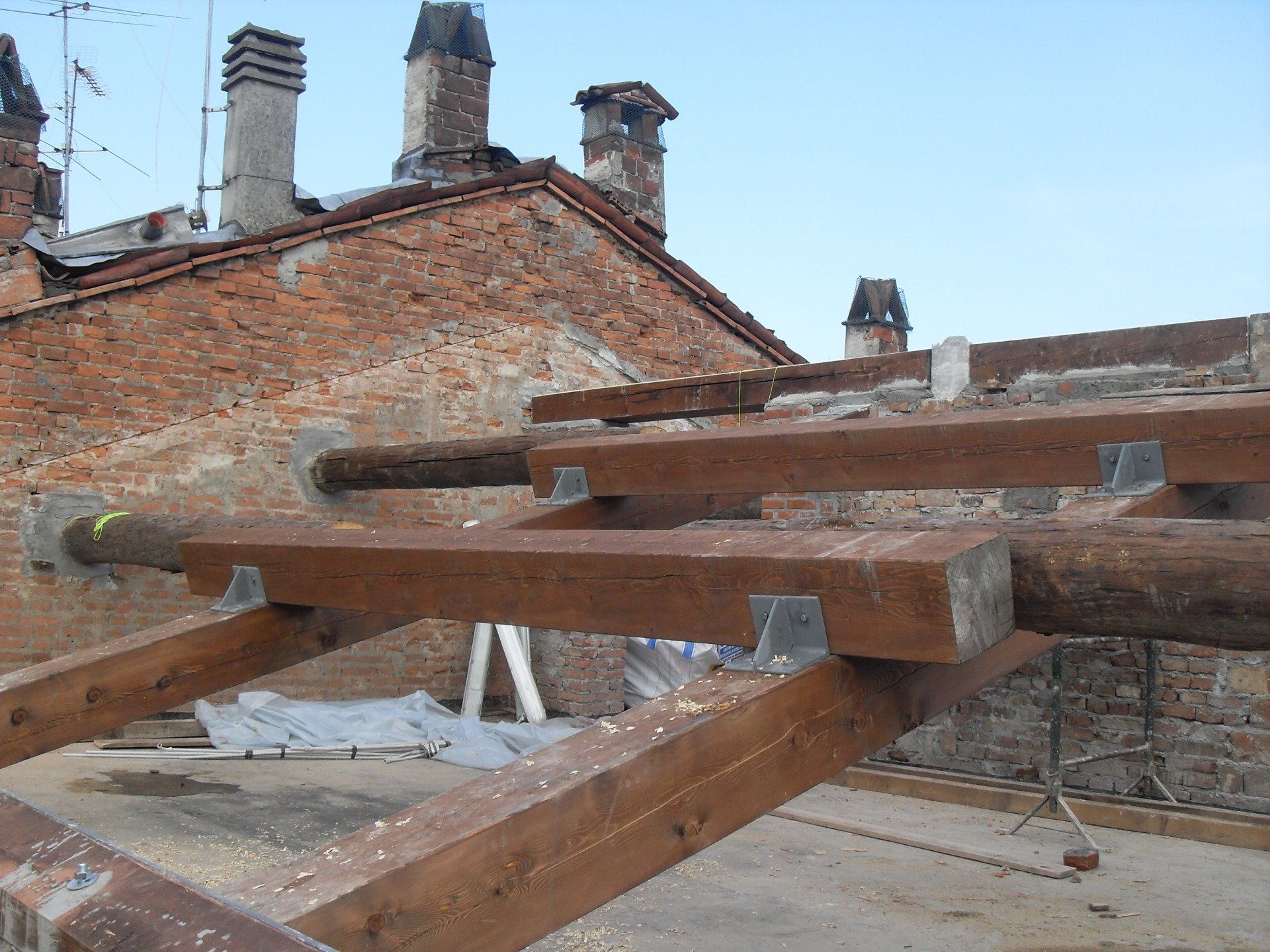

Replacing existing existing trezes with new wooden beams

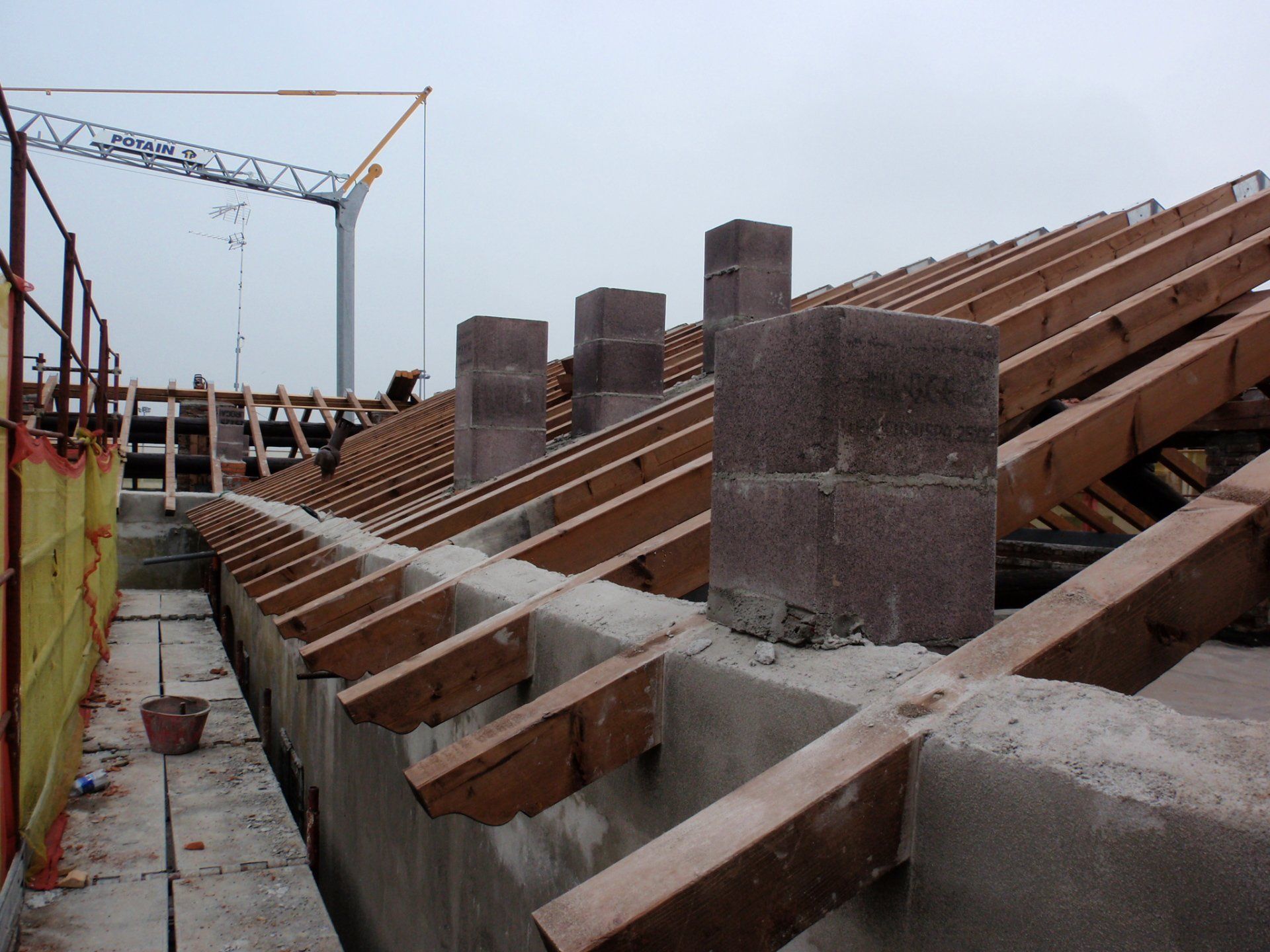

New joists and chimneys

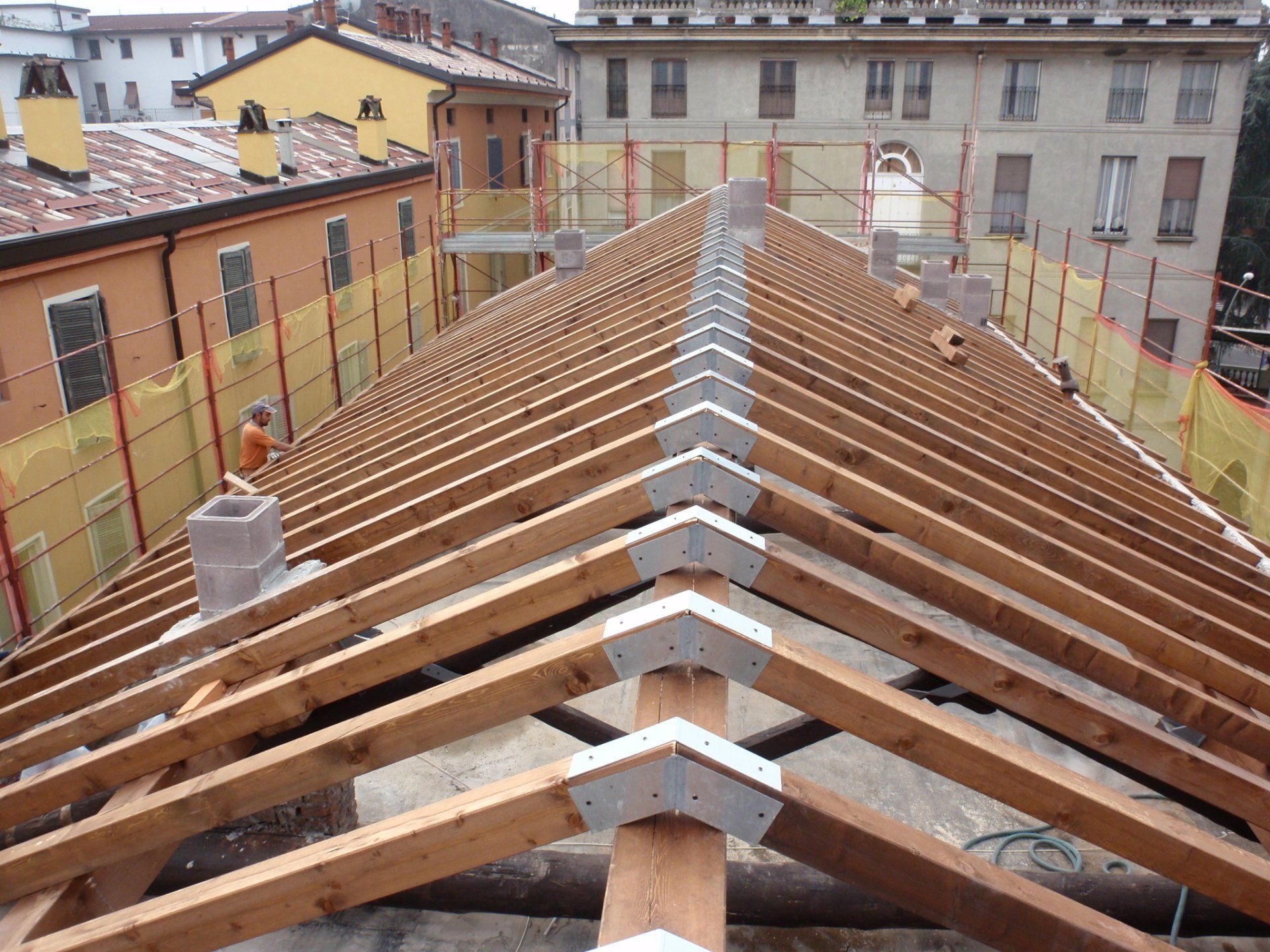

Particular connection of the joists with shaped metal plates

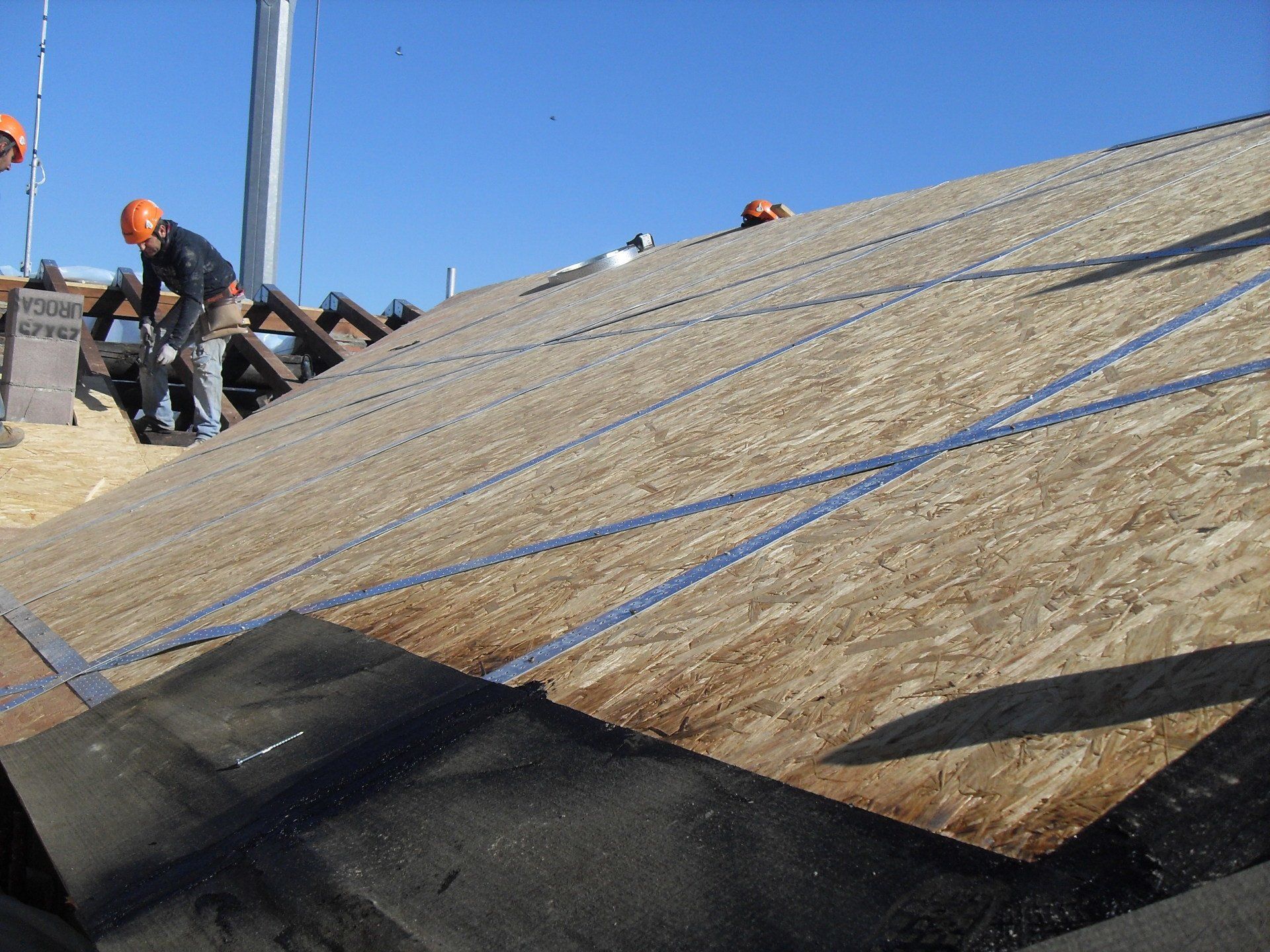

Support consisting of double OSB crossed panel, braces with metal plates and installation of waterproof sheath

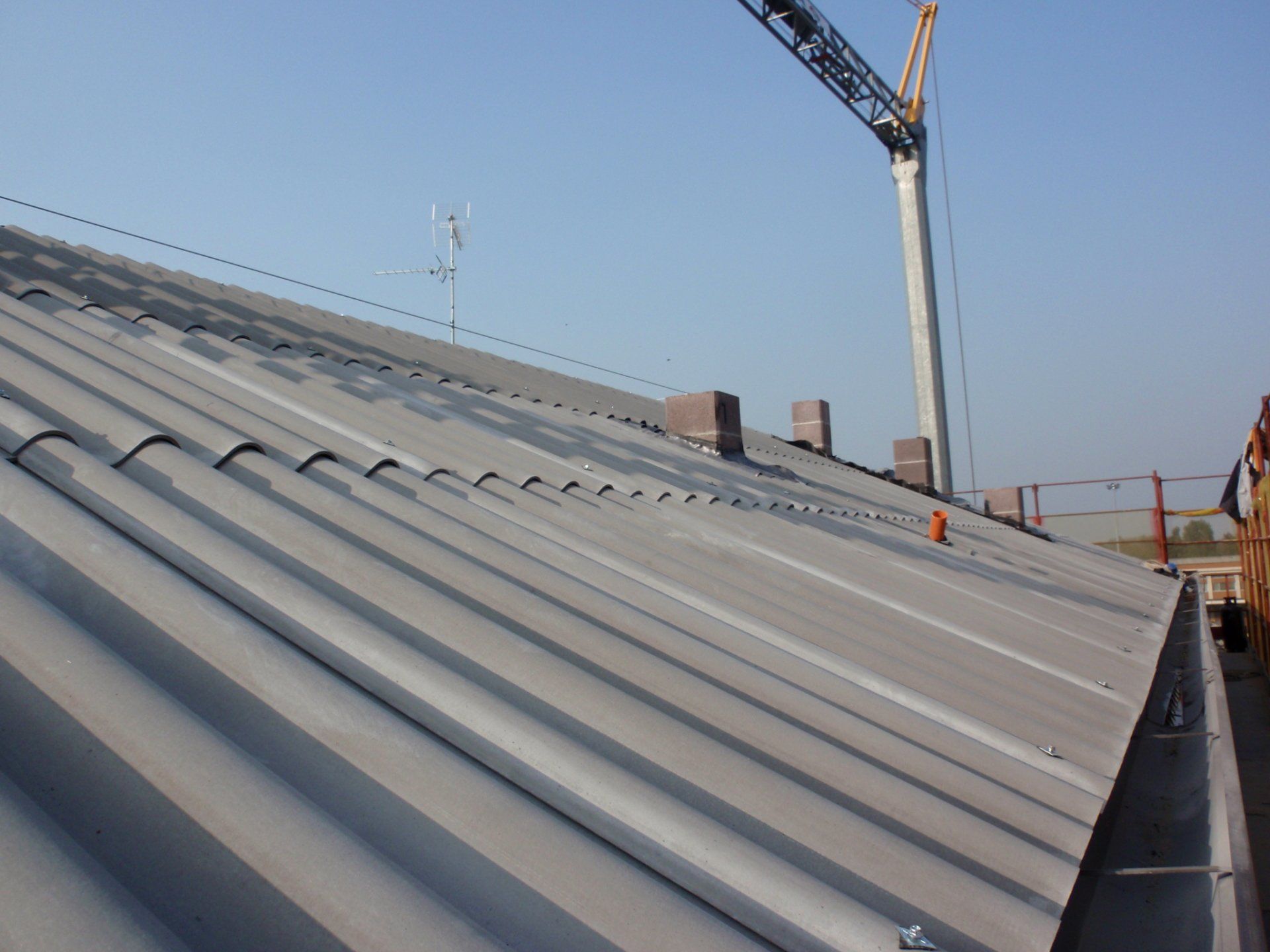

Covered view with corrugated slabs in ecological fiber cement and lifeline on the ridge

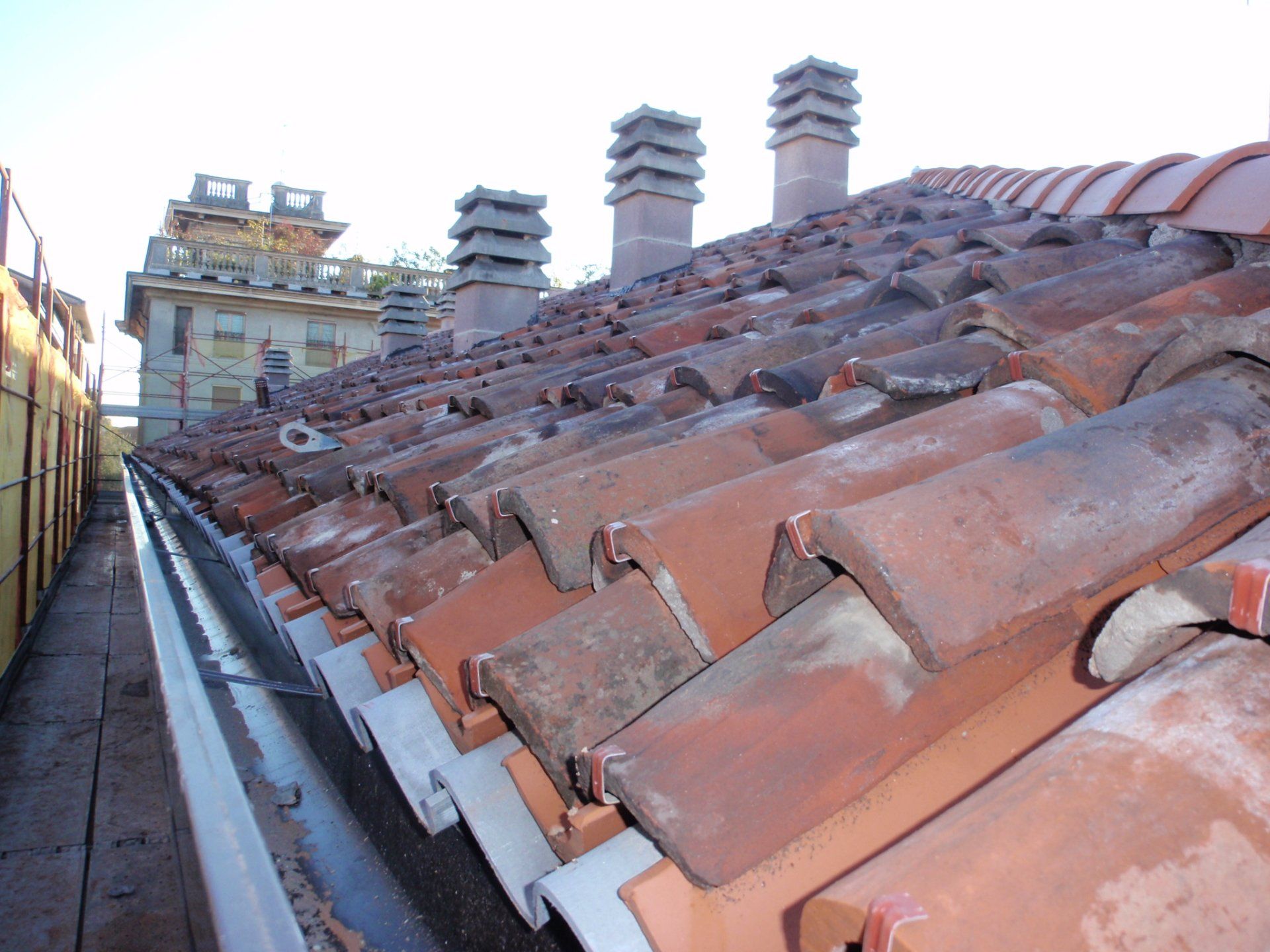

Double layer covering covering of coppi set with hook and new chimney pots

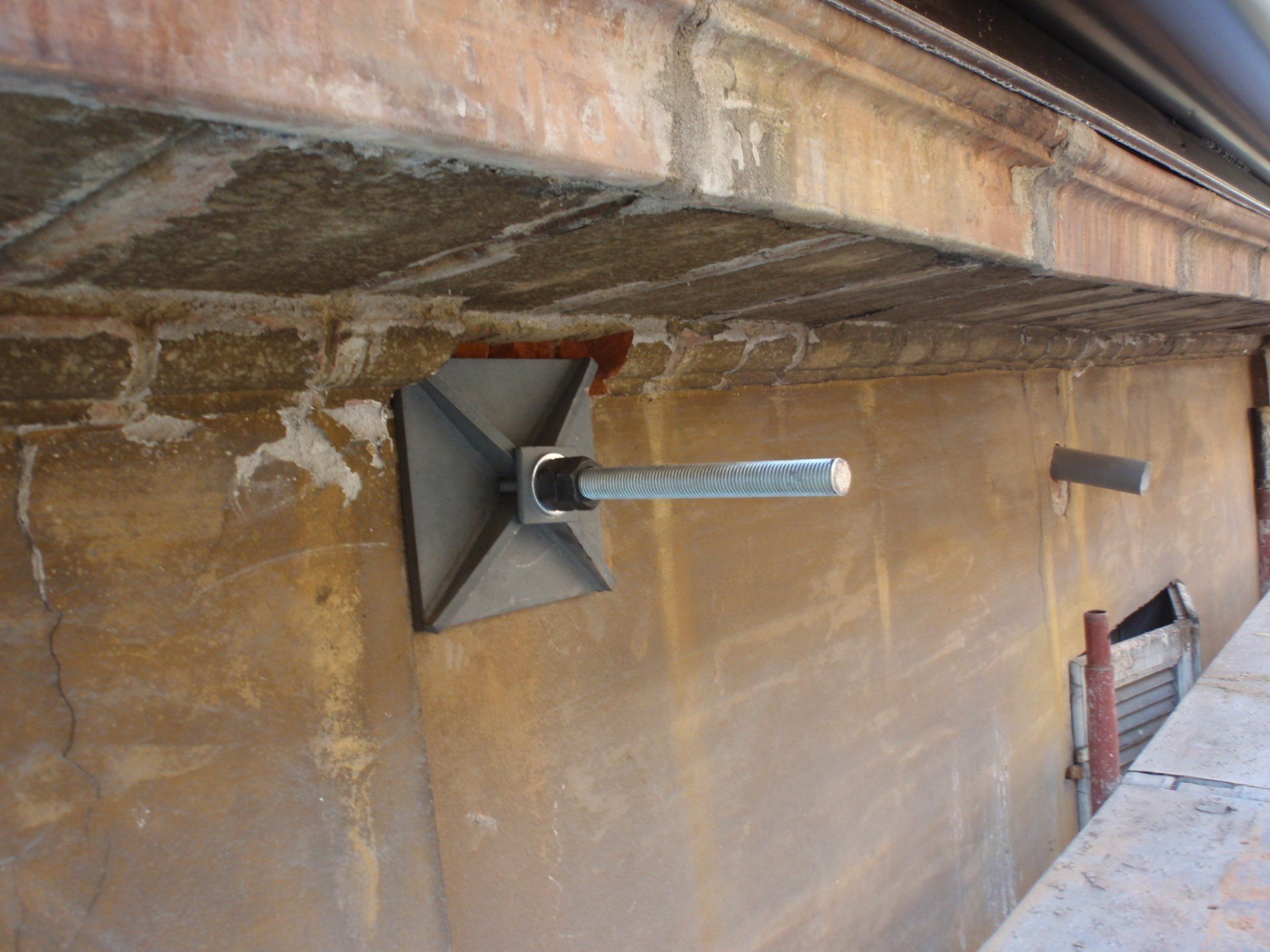

Particular anchor plate for connecting steel tie to the masonry
View more
Description: Renovation of the wooden condominium roof "Dante 63" - Via Dante n.63 - Cremona

Client: condominium "Dante 63" - Via Dante n.63 - Cremona

Services: calculation report, preliminary design, final design, execution and project management

Period: 2012
